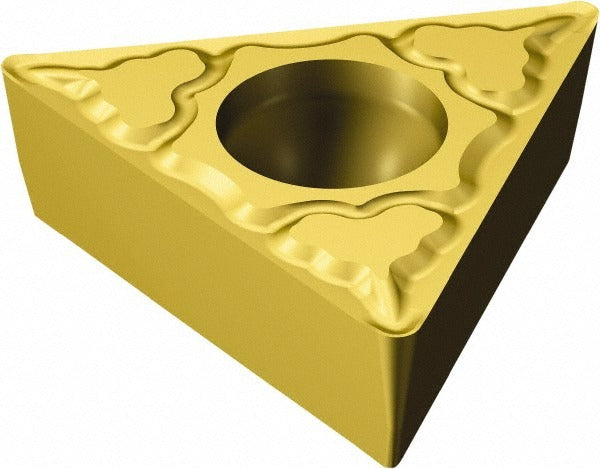

Sandvik Coromant 5752790 Turning Insert TCMT32.52-MM 2035

Product Description

The SANDVIK COROMANT 5752790 is a TCMT-style triangular turning insert designed for precision metal-cutting operations on CNC lathes and turning centers. It carries the manufacturer grade 2035 and features a PVD-applied TiAlN and TiN dual coating that supports extended tool life when machining stainless steel and other difficult materials. The insert has a 3/8-inch inscribed circle, a 0.618-inch cutting edge length, and a 1/32-inch corner radius. The MM chip breaker geometry controls chip flow in medium finishing and semi-finishing cuts. Licensed machinists and CNC operators install this insert as a direct replacement in CoroTurn 107 tooling systems.

This insert is sized and toleranced for use in CoroTurn 107 series toolholders. Its primary workpiece material designation is M, indicating suitability for stainless steel and similar ISO M-group materials. The screw-lock holding method and TCMT geometry make it appropriate for both external and internal turning applications where a positive rake angle and reliable chip control are required. The neutral hand orientation allows use in standard right-hand toolholder pockets without modification. Typical applications include finish turning and semi-finishing on stainless steel components in general machining, aerospace, and medical manufacturing environments.

Key Features

• PVD-applied TiAlN and TiN dual coating for wear resistance on ISO M-group materials
• MM chip breaker geometry engineered for medium finishing and semi-finishing cuts
• 60-degree triangle insert shape with 3 usable cutting edges per insert
• 1/32-inch (0.0313-inch) corner radius for controlled surface finish
• Screw-lock mounting with 0.1732-inch hole diameter for secure seating in CoroTurn 107 holders
• Neutral hand orientation for compatibility with standard toolholder pockets

Compatibility

Designed for use with SANDVIK COROMANT CoroTurn 107 series toolholders accepting TCMT-style screw-lock inserts with a 3/8-inch inscribed circle. ISO code TCMT 16 T3 08-MM 2035. Insert size code 32.52.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Use the correct Torx or hex key to tighten the clamping screw to the toolholder manufacturer's specified seating procedure — do not overtighten, as this can crack the carbide. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert.
