Sandvik Coromant 5751847 Turning Toolholder 5/8 Shank

Product Description

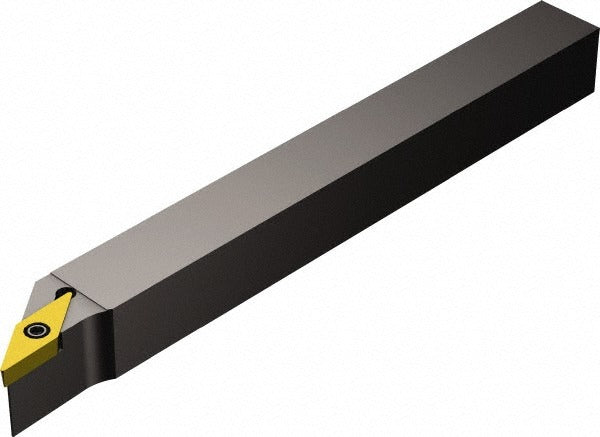

The SANDVIK COROMANT 5751847 is a right-hand indexable turning toolholder in the SVJBR103C-S style, part of the CoroTurn 107 series. It accepts VBMT 16 04 08 inserts and uses a screw clamping method for secure insert retention during turning operations. The shank measures 0.625 inches wide by 0.625 inches tall, with an overall length of 5.0 inches. The toolholder is machined from steel and features a neutral rake angle of 0 degrees, making it well suited to general-purpose external turning on CNC lathes and turning centers. Installation is straightforward for qualified machinists and toolroom technicians.

This toolholder is designed for external turning applications in metal-cutting environments, including production shops and job shops running CNC or manual lathes. The SVJBR style provides a side-cutting geometry appropriate for finishing and semi-finishing passes. Its compact head length of 1.61 inches and a back-of-bar to cutting edge distance of 0.625 inches allow use in space-constrained setups. This is a single-use, non-multi-tool configuration intended as a dedicated turning holder.

Key Features

• SVJBR103C-S toolholder style for external turning with right-hand orientation
• Screw clamping method ensures positive insert lock under cutting loads
• Compatible with VBMT 16 04 08 inserts for flexible grade selection
• Neutral rake angle (0 degrees) supports a broad range of workpiece materials
• Steel construction for rigidity and durability in production environments
• Part of the CoroTurn 107 series for consistent system compatibility

Compatibility

Designed for use with VBMT 16 04 08 indexable inserts as part of the SANDVIK COROMANT CoroTurn 107 turning system. Fits CNC lathes and turning centers accepting a 5/8 inch square shank toolholder.

Installation Notes

This toolholder should be installed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the lathe is powered down before mounting or changing the toolholder. Confirm the turret or tool post is clean and free of chips before seating the shank. Follow the machine tool manufacturer torque specifications for clamping bolts — do not use values not documented in the machine or tooling manual.
