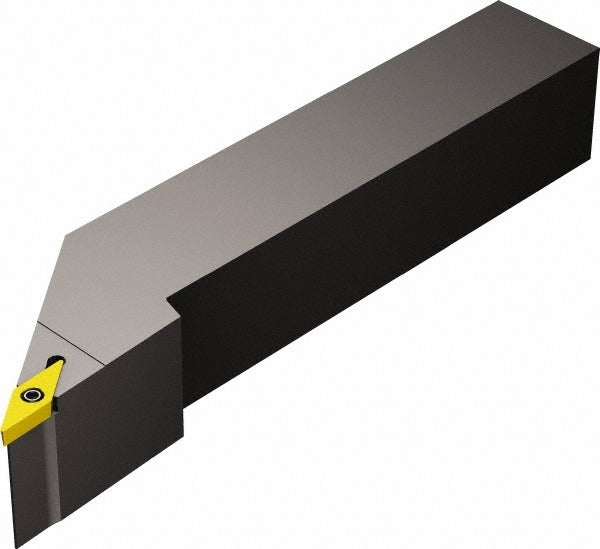

Sandvik Coromant 5751635 Svjbr Turning Toolholder 1x1 Inch

Product Description

The SANDVIK COROMANT 5751635 is a left-hand SVJBR-style indexable turning toolholder designed for external turning and facing operations on CNC lathes and turning centers. It accepts VBMT 332 inserts secured by a screw clamping method, providing rigid, repeatable insert positioning. The shank measures 1 inch wide by 1 inch tall with an overall length of 6 inches. Built from steel, this toolholder is part of the CoroTurn 107 series and features a neutral rake angle of 0 degrees. It is suited for machinists and tool-room professionals running facing cuts on ferrous and non-ferrous workpieces.

This toolholder is intended for use in production turning environments where consistent insert indexing and secure clamping are required. The SVJBR configuration positions the insert for left-hand cutting, making it appropriate for facing toward the chuck or for specific tool-turret orientations. The CoroTurn 107 series is a multi-use platform, allowing the same holder to be applied across a range of insert grades and coatings suited to different workpiece materials. It fits standard square-shank tool blocks and quick-change toolpost systems that accept a 1 x 1 inch shank profile.

Key Features

• SVJBR left-hand holder style for external turning and facing applications
• Screw clamping method for secure, repeatable VBMT 332 insert retention
• 1 inch x 1 inch steel shank for compatibility with standard square-shank tool blocks
• Neutral rake angle (0 degrees) supports consistent chip formation across workpiece materials
• Overall length of 6 inches with a head length of 1.24 inches
• Multi-use tool design within the CoroTurn 107 series

Compatibility

Designed to accept VBMT 332 inserts with a 3/8 inch inscribed circle. Compatible with standard square-shank lathe tool blocks and quick-change systems accepting a 1 x 1 inch shank profile.

Installation Notes

Installation should be performed by a qualified machinist or tool-room technician. Ensure the lathe or turning center is fully powered down and the spindle is locked before mounting or removing the toolholder. Seat the shank fully in the tool block and verify insert orientation and clamping screw engagement before resuming cutting operations. Follow the machine manufacturer guidelines and applicable shop safety procedures when setting tool height and offset.
