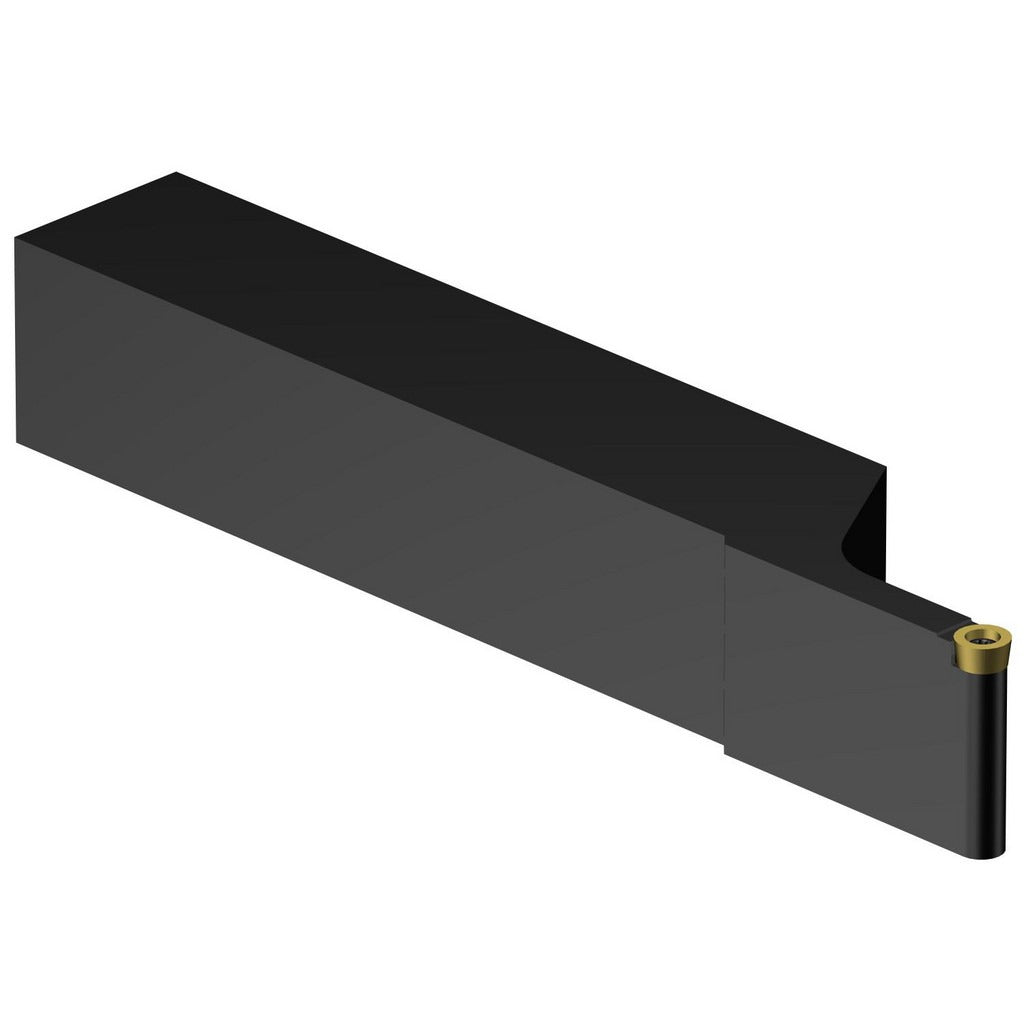

Sandvik Coromant 5751351 Turning Toolholder SRACL162D 1x1

Product Description

The SANDVIK COROMANT 5751351 is an indexable turning toolholder in the CoroTurn 107 series, configured in the SRAC style for left-hand cutting operations. It uses a screw clamping method to secure RCMT 06 03 00 round inserts, providing rigid and repeatable insert location during turning operations. The shank measures 1 inch wide by 1 inch tall, with an overall length of 6 inches. The neutral rake geometry at 0 degrees suits general-purpose external turning on CNC lathes and turning centers. The steel toolholder body is built to handle standard production turning loads. This toolholder is installed by machinists and CNC tooling technicians in job shop and production environments.

This toolholder is suited for external turning applications on CNC lathes and turning centers where a left-hand, round-insert configuration is required. The SRAC style positions the insert for profiling and general turning passes. The 1 x 1 inch shank fits standard tool block and turret positions commonly found on production turning centers. The CoroTurn 107 series is designed for light to medium cutting conditions with round inserts, making it a practical choice for contour turning and finishing passes on a range of workpiece materials.

Key Features

• SRAC toolholder style with left-hand cutting orientation
• Screw clamping method for secure, repeatable RCMT 06 03 00 insert retention
• 1 inch by 1 inch shank cross-section for standard turret compatibility
• 6 inch overall length with a 1 inch head length
• Neutral rake at 0 degrees for general-purpose turning versatility
• Steel construction for rigidity and durability in production turning

Compatibility

Designed for use with RCMT 06 03 00 round indexable inserts. Part of the SANDVIK COROMANT CoroTurn 107 series of indexable turning toolholders.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before mounting or removing the toolholder from the turret. Ensure the shank seating surfaces and tool block are clean and free of chips before clamping. Follow the machine tool manufacturer torque specifications for the turret clamping hardware, and verify insert seating before resuming cutting operations.
