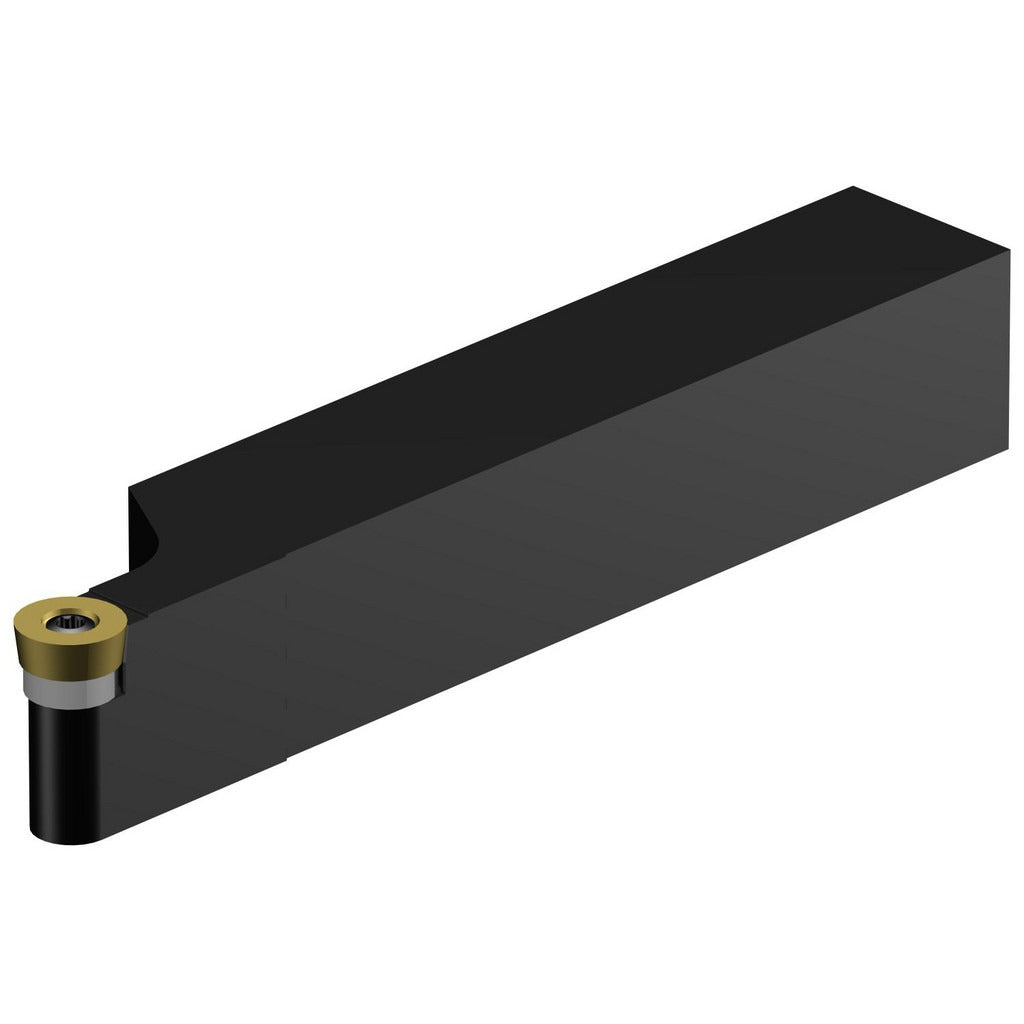

Sandvik Coromant 5751315 Indexable Turning Toolholder

Product Description

The SANDVIK COROMANT 5751315 is a right-hand indexable turning toolholder in the CoroTurn 107 series, designed for use with RCMT 12 04 00 round inserts secured by screw clamping. The toolholder carries a neutral rake angle of 0 degrees and an SRAC toolholder style, making it well suited for external turning operations that require consistent insert seating and reliable clamping force. Built from steel, the shank measures 1 inch wide by 1 inch high with an overall length of 6 inches. Licensed machinists and CNC lathe operators install this holder in production and job-shop environments where round-insert finishing and profiling passes are common.

This toolholder is intended for use on CNC lathes and turning centers performing external turning operations. The SRAC style with a right-hand orientation positions the cutting edge for standard right-to-left feed direction passes. The CoroTurn 107 series is a Sandvik Coromant platform developed around round RCMT inserts, which provide a large usable cutting edge count and smooth chip flow. It is a single-unit item with a minimum order quantity of 1.

Key Features

• SRAC toolholder style with right-hand orientation for standard external turning
• Screw clamping method provides positive insert location and resistance to cutting forces
• Neutral rake geometry (0-degree rake angle) supports a broad range of workpiece materials
• 1 inch by 1 inch steel shank for rigid setup in standard lathe tool blocks
• Overall length of 6 inches with a head length of 1 inch and back-of-bar to cutting edge distance of 1.075 inches
• Part of the Sandvik Coromant CoroTurn 107 series platform

Compatibility

Compatible with RCMT 12 04 00 round indexable inserts. Designed as a CoroTurn 107 series toolholder for use on CNC lathes and turning centers accepting a 1 inch by 1 inch square-shank toolholder.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the turret or tool block is locked out before mounting or removing the toolholder. Use the appropriate Torx or hex key to secure the insert clamping screw to the insert manufacturer's recommended seating procedure without overtightening. Verify insert seating and shim stack condition before resuming cutting operations.
