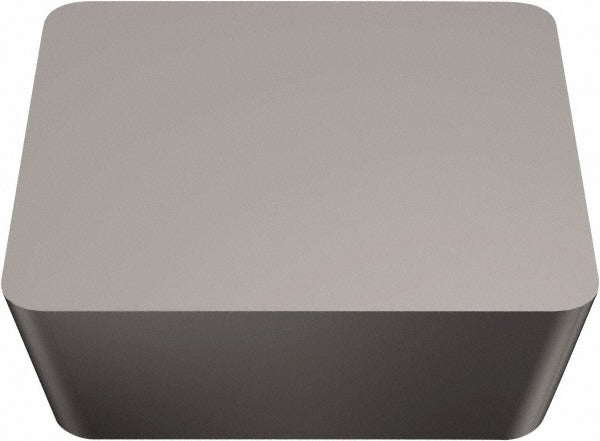

Sandvik Coromant 5751015 Turning Insert SPG322 H13A Carbide

Product Description

The SANDVIK COROMANT 5751015 is a solid carbide turning insert designed for metal cutting and finishing operations on CNC lathes and turning centers. Manufactured to ISO code SPGN 09 03 08, this insert features a square shape with a 90-degree included angle, an 11-degree relief angle, and an H13A uncoated bright finish grade. The 0.0313-inch corner radius makes it suited for general-purpose turning where a sharp, defined edge is required. With an inscribed circle of 0.375 inches and an insert length of 0.3435 inches, it fits standard square insert toolholders. Licensed machinists and CNC operators use this insert in production and job-shop environments.

This insert is intended for turning applications where an uncoated carbide grade performs reliably, including cast iron, non-ferrous metals, and certain hardened materials where coating buildup would reduce edge precision. The SPGN insert style uses a clamp holding method, making it compatible with toolholders designed for top-clamp or pin-lock configurations with a P clearance code and G tolerance code. It is sold individually with a minimum order quantity of 10 units, which is typical for indexable insert procurement in production settings.

Key Features

• Solid carbide construction with H13A uncoated bright finish for sharp edge retention
• Square insert shape (S) with 90-degree included angle and SPGN insert style
• 11-degree relief angle (clearance code P) for positive cutting geometry
• 0.0313-inch corner radius suited for general turning and finishing passes
• G tolerance code provides consistent dimensional accuracy across the insert batch
• ISO code SPGN 09 03 08 H13A for direct cross-reference with toolholder catalogs

Compatibility

Designed as an OEM-style indexable turning insert for use in square-insert clamp-style toolholders accepting SPGN geometry with P clearance and G tolerance codes.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine before indexing or replacing inserts. Use the appropriate torque wrench and clamp screws specified by the toolholder manufacturer to secure the insert. Inspect the insert pocket and clamp for debris or wear before seating a new insert to maintain proper cutting geometry.
