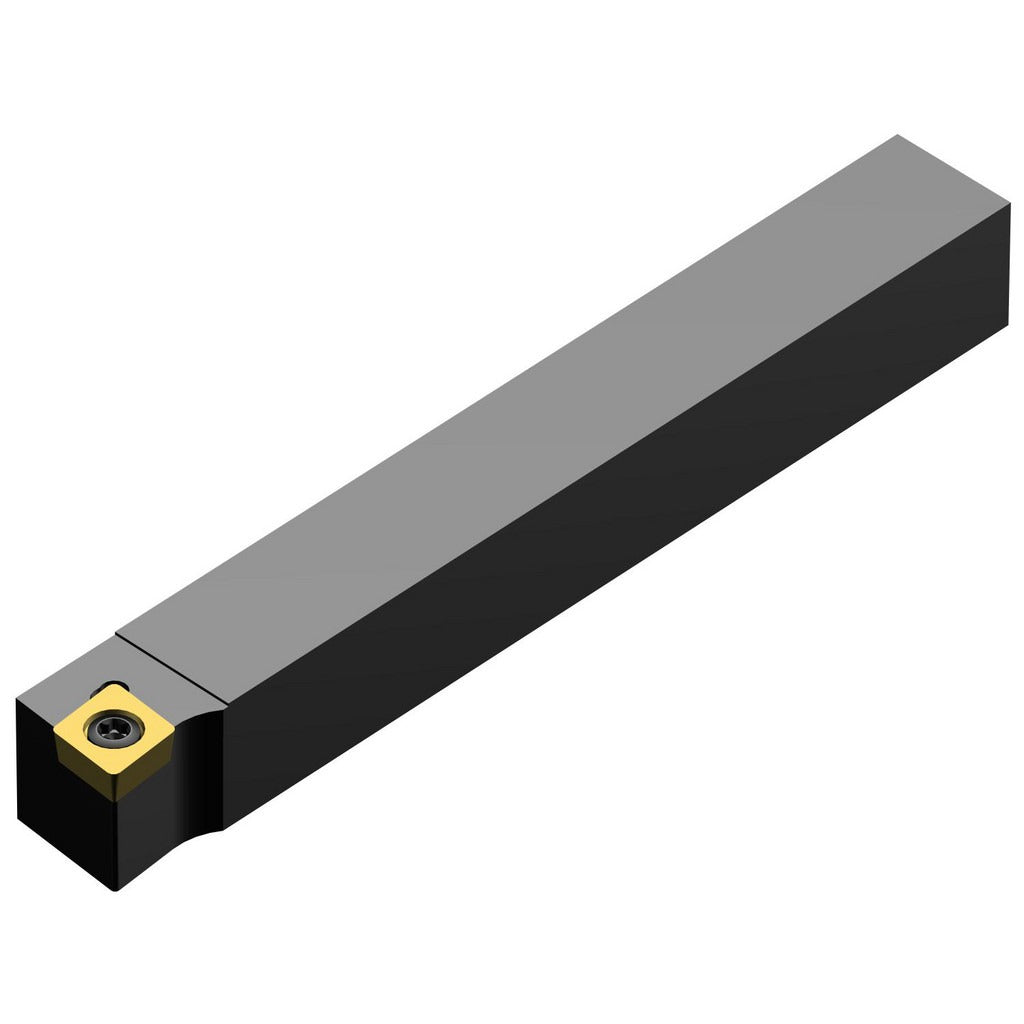

Sandvik Coromant 5748742 Sclcr Turning Toolholder 5/8 in

Product Description

The SANDVIK COROMANT 5748742 is a right-hand indexable turning toolholder in the SCLCR style, designed to hold CCMT 32.52 inserts via a screw clamping method. Built from steel with a neutral rake angle of 0 degrees, it is sized with a 5/8-inch square shank (0.625 inches wide by 0.625 inches tall) and an overall length of 5 inches. This toolholder is suited for facing operations on CNC and manual lathes, providing consistent insert positioning and rigid support during interrupted or continuous cuts. Licensed machinists and CNC operators install this holder as part of a standard turning setup.

This toolholder is used in turning center and lathe applications where precision facing operations are required. The SCLCR style provides a negative lead angle that is well suited for right-hand facing and light profiling work. The screw-lock insert retention keeps the CCMT 32.52 insert firmly seated under cutting loads, minimizing micro-movement and extending insert life in both roughing and finishing passes on ferrous and non-ferrous materials.

Key Features

• SCLCR toolholder style with right-hand cutting orientation
• Accepts CCMT 32.52 inserts with 3/8-inch inscribed circle
• Screw clamping method for secure insert retention
• Neutral rake angle (0 degrees) for versatile material engagement
• 5/8-inch square shank with 5-inch overall length for standard turret fitment
• Steel construction for rigidity and durability in production environments

Compatibility

Designed as an OEM-style replacement toolholder compatible with lathes and turning centers accepting a 5/8-inch square shank and using CCMT 32.52 series inserts.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine before mounting or removing the toolholder from the turret. Torque the insert-retention screw according to the insert manufacturer specification printed on the insert packaging or toolholder documentation. Verify tool centerline height and clearance angles before initiating a cut.
