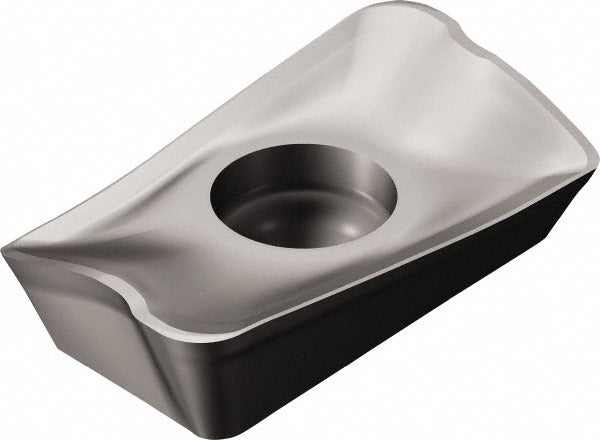

Sandvik Coromant 5745683 Milling Insert R390 Carbide

Product Description

The SANDVIK COROMANT 5745683 is a solid carbide milling insert engineered for high-performance face and shoulder milling operations. Carrying ANSI and ISO designation R390-11 T3 08M-PM 530, this right-hand, single-sided insert features a parallelogram shape with a 90-degree included angle and a positive rake geometry. The PM chip breaker promotes controlled chip flow across a range of metal-removal applications. The bright, uncoated cermet substrate in grade 530 delivers consistent edge integrity on demanding workpiece materials. Insert dimensions are 11.00 mm wide and 3.97 mm thick, with a 0.80 mm corner radius and a maximum depth of cut of 10.00 mm. Installation is by screw-holding method.

This insert is suited for milling steel, stainless steel, non-ferrous metals, and hard materials in both roughing and finishing contexts. It fits toolholders and cutter bodies in the R390 and M-32 series, making it applicable to a broad range of CNC machining centers used in general metalworking, aerospace component work, and precision part production. The positive rake and rounded cutting edge style reduce cutting forces, which helps maintain dimensional accuracy on thin-walled or complex workpieces. Each insert provides two cutting edges, offering a cost-effective edge life per insert.

Key Features

• Grade 530 cermet substrate with bright, uncoated finish for consistent edge performance
• PM chip breaker controls chip formation across steel, stainless steel, non-ferrous, and hard material applications
• Positive rake angle of 20 degrees reduces cutting forces and heat generation
• 0.80 mm corner radius (1/32 inch) with rounded cutting edge style for smooth surface finish
• Maximum depth of cut: 10.00 mm (0.3937 inches)
• Two cutting edges per insert; screw-mounted for secure, repeatable positioning

Compatibility

Compatible with R390 and M-32 series cutter bodies as specified by the manufacturer. ANSI and ISO code R390-11 T3 08M-PM 530 governs toolholder fitment. Verify cutter pocket geometry and screw-hole sizing against the host body specification before installation.

Installation Notes
