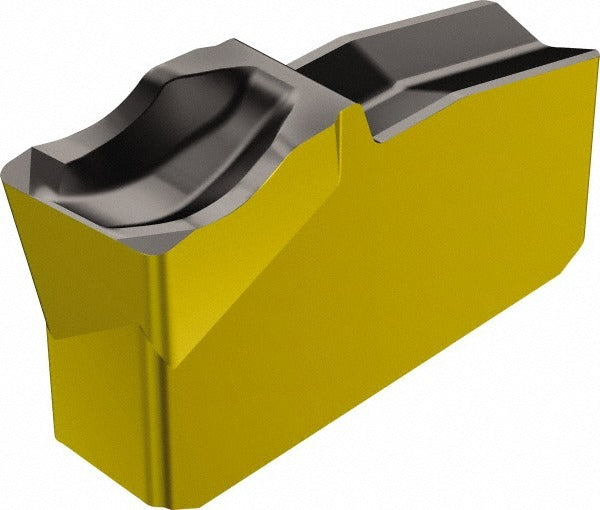

Sandvik Coromant 5741618 Cutoff Insert 4mm T-max Q-cut

Product Description

The SANDVIK COROMANT 5741618 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. Built to the R151.2 insert style with a 4 mm (0.1575 inches) cutting width, it seats in compatible T-Max Q-Cut toolholders via a clamp-style holding method. The grade 4225 carbide substrate is finished with an MTCVD-applied TiCN/Al2O3/TiN multilayer coating, which provides thermal resistance and wear protection during high-speed parting cuts on steel and cast iron. A 5-degree right-hand lead angle and 7-degree relief angle define the cutting geometry, while a 0.30 mm corner radius reduces edge stress at the start of cut.

This insert is intended for production turning environments where consistent parting depth and surface finish are required. It is suited for right-hand applications on conventional and gang-tool lathes in both job-shop and high-volume production settings. The 4E chipbreaker geometry is optimized for chip control in medium to finishing parting passes. Machinists and CNC turning technicians working with steel, alloy steel, and similar ferrous materials are the primary installers of this insert type.

Key Features

• Solid carbide construction with MTCVD TiCN/Al2O3/TiN coating for extended tool life on ferrous materials
• 4 mm (0.1575 inches) cutting width with 0.30 mm corner radius for controlled parting geometry
• 5-degree right-hand lead angle and 7-degree relief angle for clean entry and reduced radial force
• 4E chipbreaker for effective chip evacuation during parting operations
• Clamp-style insert holding method for positive seating in T-Max Q-Cut toolholders
• Grade 4225 substrate engineered for thermal and abrasion resistance in continuous cuts

Compatibility

Designed as an OEM-style replacement insert for T-Max Q-Cut series toolholders accepting R151.2 style inserts with an insert seat size of 40.

Installation Notes

Cutoff inserts are installed by qualified CNC machinists or turning technicians. Disengage the machine spindle and confirm the turret or tool post is fully indexed and locked before changing inserts. Use the correct torque wrench on the clamp screw to avoid cracking the carbide insert or distorting the pocket seat. Inspect the insert pocket for chips or debris before seating the new insert, and verify secure clamping before resuming any cutting operation.
