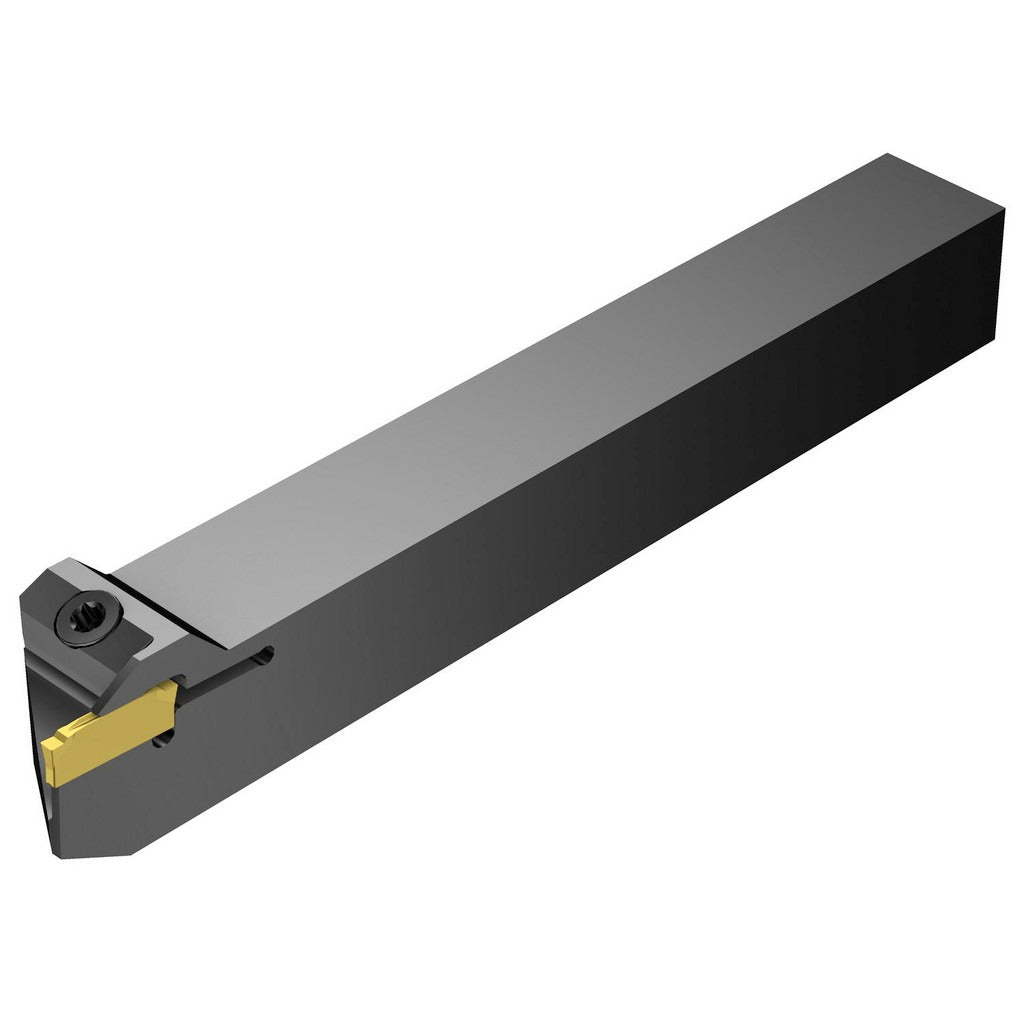

Sandvik Coromant 5740859 Grooving Cutoff Toolholder

Product Description

The SANDVIK COROMANT 5740859 is a right-hand indexable grooving and cutoff toolholder in the CoroCut 1-2 series, designed for external grooving, parting, and cut-off operations on CNC lathes and turning centers. It accepts N123F2-0250-CM inserts secured by a clamp-style holding method, providing rigid insert clamping during interrupted and continuous cuts. The toolholder handles a groove width range of 2.39 to 3.18 mm and a maximum depth of cut of 17 mm, making it well suited for medium-range grooving and parting applications in production turning environments. The shank measures 16 mm x 16 mm with an overall length of 125 mm.

This toolholder is intended for external turning operations in both high-volume production and job-shop settings. It mounts in standard square-shank tool stations on CNC turning centers and manual lathes with appropriately sized tool blocks. Typical applications include grooving for snap rings and O-ring grooves, face grooving, and full parting of bar stock. The CoroCut 1-2 platform is a modular system, and this holder is paired specifically with N123F2 series inserts. Coolant-through delivery is not supported on this model.

Key Features

• Groove width range of 2.39 to 3.18 mm for precise external grooving and parting
• Maximum depth of cut of 17 mm suitable for medium parting and deep groove operations
• Right-hand orientation for standard OD turning station mounting
• Clamp-style insert holding for rigid, repeatable insert positioning
• 16 mm x 16 mm square shank with 96.40 mm shank length for compact tool station fitment
• Part of the CoroCut 1-2 modular platform, compatible with N123F2 insert series

Compatibility

Designed for use with N123F2-0250-CM inserts. Compatible insert size code is N123F2. Toolholder style is RF123..B-S within the CoroCut 1-2 series. This holder does not support coolant-through delivery.

Installation Notes

Installation is typically performed by a machinist or CNC tooling technician. Before changing inserts or mounting the holder, ensure the machine is powered down and the spindle is fully stopped. Secure the shank in the tool station to the depth recommended by the machine tool manufacturer, and verify insert seating and clamp torque using the tooling manufacturer's guidelines for CoroCut 1-2 components. Do not exceed the rated maximum depth of cut or groove width for the selected insert.
