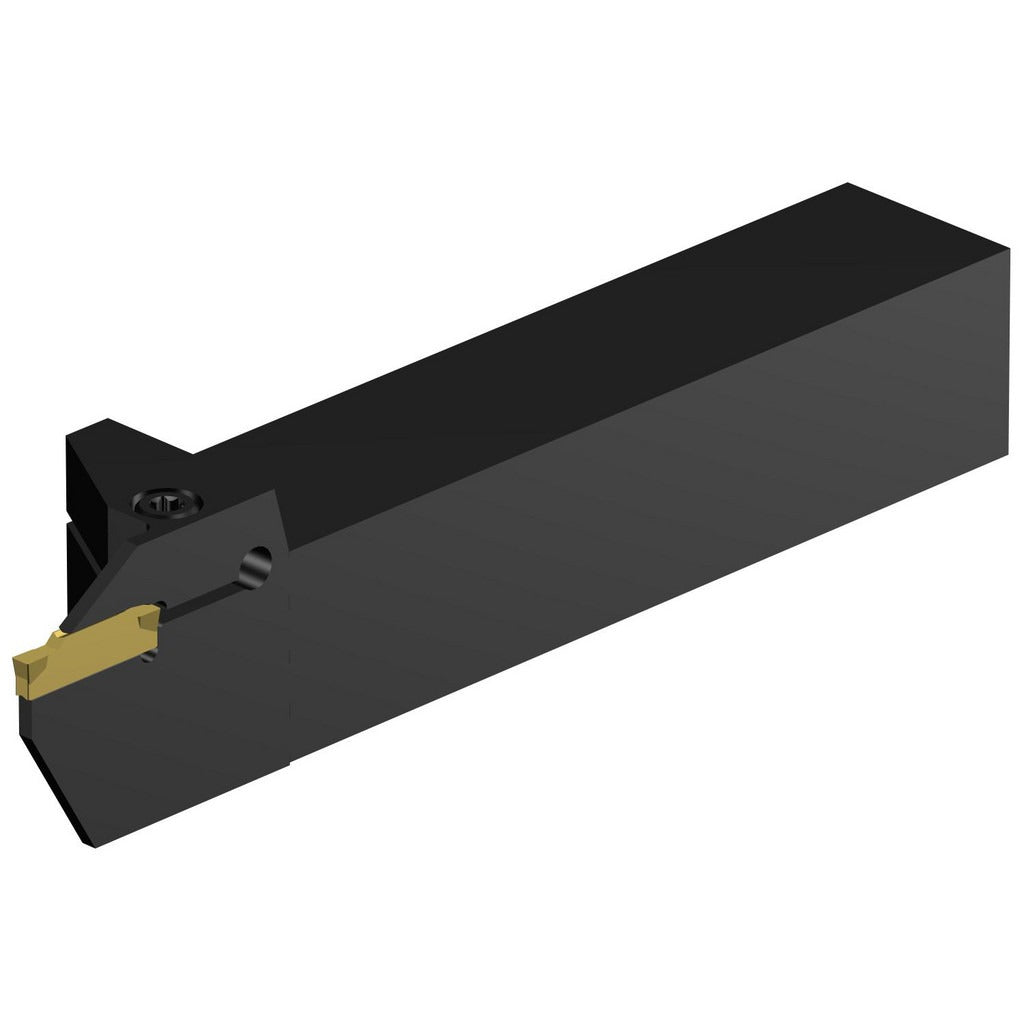

Sandvik Coromant 5740804 Grooving Cutoff Toolholder RF123F079-16B

Product Description

The SANDVIK COROMANT 5740804 is an indexable grooving and cutoff toolholder designated RF123F079-16B, part of the CoroCut 1-2 series. It is designed for external grooving, parting, and cut-off operations on CNC lathes and turning centers. The toolholder accepts N123F2-0250-CM inserts and uses a clamp-style insert holding method for secure, repeatable edge positioning. It handles a groove width range of 2.39 to 3.18 mm and a maximum depth of cut of 20.07 mm (0.79 inches). The shank measures 1 x 1 inches in cross-section with an overall length of 152.40 mm (5.999 inches). Machinists and CNC operators in precision machining, job shop, and production turning environments install this toolholder.

This toolholder is suited for external grooving and parting applications on ferrous and non-ferrous workpieces in both production and job shop turning environments. It is configured for right-hand operation and is compatible with standard 1-inch square shank tool blocks and quick-change tooling systems that accommodate that shank profile. The CoroCut 1-2 series is commonly used in applications requiring clean groove walls and controlled chip evacuation. No coolant-through capability is present on this holder. It is appropriate for use on manual turret lathes and CNC turning centers where the insert size code N123F2 is the specified platform.

Key Features

• Groove width range of 2.39 to 3.18 mm supports multiple grooving and parting passes
• Maximum depth of cut of 20.07 mm (0.79 inches) for deep groove and cutoff work
• Right-hand configuration for standard external turning setups
• Clamp-style insert holding method provides rigid, repeatable insert seating
• 1 x 1 inch square shank fits standard tool blocks and quick-change systems
• Part of the CoroCut 1-2 series for broad insert availability and system consistency

Compatibility

Compatible with N123F2-0250-CM inserts. Insert size code N123F2 is the specified compatible insert family. Toolholder style is RF123..B within the CoroCut 1-2 platform.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. The machine spindle must be stopped and the machine placed in an e-stop or lockout-tagout state before mounting or removing the toolholder or insert. Ensure the shank seating surface in the tool block is clean and free of chips before clamping. Verify insert clamp torque using the tooling manufacturer reference for the CoroCut 1-2 clamping system before running the first part.
