Sandvik Coromant 5739169 Grooving Cutoff Toolholder Right Hand

Product Description

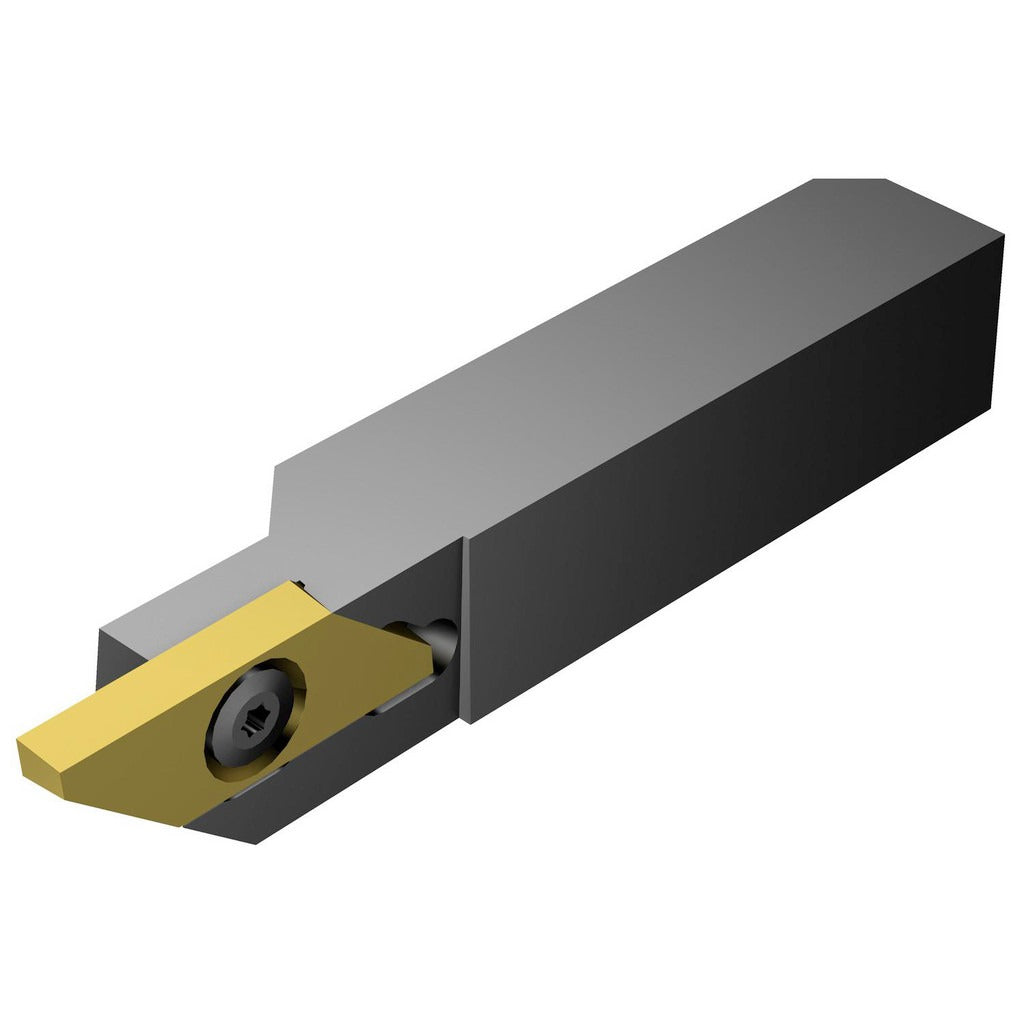

The SANDVIK COROMANT 5739169 is an indexable grooving and cutoff toolholder in the CoroCut XS series, designed for external grooving, parting, and cut-off operations on CNC lathes and turning centers. It uses a QS-SMALR083X style head with a clamp-style insert holding method, accepting MAxR 3.. inserts with a compatible insert size code of MACR 3 200. The toolholder features a 0.5-inch square shank and delivers a maximum depth of cut of 0.335 inches (8.5 mm). It is a right-hand configuration intended for professional machining environments where precise, repeatable grooving performance is required.

This toolholder is suited for external grooving and parting applications on turning centers and CNC lathes. The CoroCut XS series is built for small-part machining and Swiss-style turning environments where compact tooling with rigid insert clamping is essential. The QS quick-change shank interface allows fast, repeatable tool changes without resetting offsets, making it well suited for high-mix production environments and job shops running frequent changeovers.

Key Features

• Maximum depth of cut of 8.5 mm (0.335 inches) for external grooving and parting
• Right-hand cutting orientation with clamp-style insert retention
• QS quick-change shank interface for repeatable, zero-offset tool changes
• Accepts MAxR 3.. inserts, compatible insert size code MACR 3 200
• 0.5-inch square shank (12.70 mm) with 1.693-inch shank length
• Overall length of 2.756 inches (70.00 mm) for compact toolholder envelope
• No coolant-through — suitable for standard external coolant delivery setups

Compatibility

Designed for use with MAxR 3.. series inserts, compatible insert size code MACR 3 200, within the SANDVIK COROMANT CoroCut XS tooling system. Toolholder style is QS-SMALR/L..X. Verify insert and machine interface compatibility before ordering.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and all motion is locked out before mounting or removing the toolholder. Use the QS interface according to the machine tool builder specifications to achieve repeatable tool-tip positioning. Confirm insert seating and clamp engagement before resuming cutting operations.
