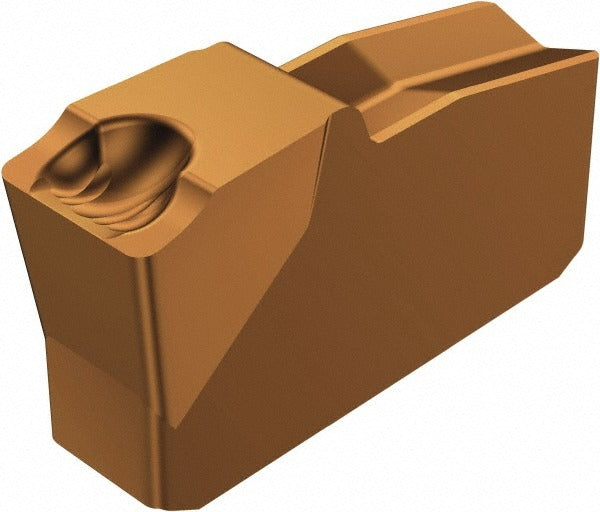

Sandvik Coromant 5738168 Grooving Insert Solid Carbide

Product Description

The SANDVIK COROMANT 5738168 is a solid carbide grooving insert designed for external grooving and parting operations on CNC lathes and turning centers. It carries a TiAlN coating applied via PVD process, which provides heat and wear resistance during high-speed cutting cycles. The insert features a neutral hand orientation and a 5G chip breaker geometry, with a cutting width of 0.2362 inches (6.00 mm) and a 7-degree rake angle. It belongs to the T-Max Q-Cut series and is cataloged under ISO code N151.2-600-60-5G 1125. Licensed machinists and CNC operators install this insert as a direct replacement in compatible T-Max Q-Cut toolholders.

This insert is suited for grooving and cut-off applications in both production and job-shop environments. The N151.2 insert style and size 60 seat make it applicable to a range of turning setups handling groove widths requiring a 6.00 mm cutting profile. The 1125 grade and PVD TiAlN coating support use on steel and other materials where edge retention and thermal stability are priorities. The multi-use designation indicates the insert supports both grooving and light turning passes within its geometry envelope.

Key Features

• Solid carbide construction with PVD TiAlN coating for wear and heat resistance
• 0.2362 inch (6.00 mm) cutting width with 0.0157 inch (0.40 mm) corner radius
• Neutral hand orientation compatible with standard T-Max Q-Cut setups
• 5G chip breaker geometry promotes chip control during grooving passes
• 7-degree rake angle for consistent cutting performance
• Multi-use insert supports grooving and light turning operations

Compatibility

Designed as a direct replacement insert for SANDVIK COROMANT T-Max Q-Cut toolholders accepting N151.2 style, size 60 seat inserts. ISO catalog number N151.2-600-60-5G 1125 confirms fitment within that system family.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom personnel. Power down and lock out the machine spindle before changing inserts. Use the appropriate T-Max Q-Cut insert clamp and torque wrench per the toolholder manufacturer's documented procedure. Inspect the insert seat for debris or damage before seating the new insert to ensure proper contact and edge alignment.
