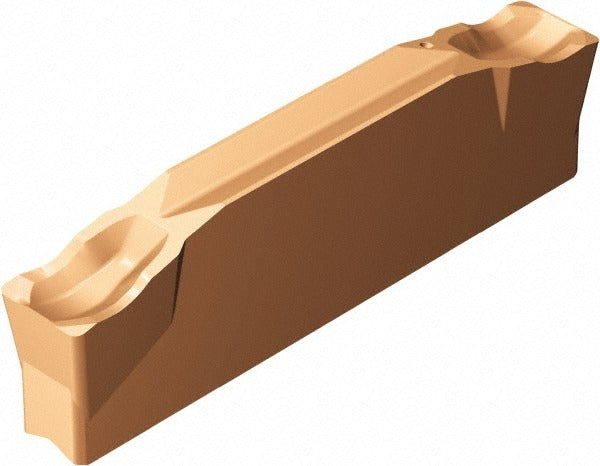

Sandvik Coromant 5736711 Cutoff Insert 6mm Corocut 1-2

Product Description

The SANDVIK COROMANT 5736711 is a solid carbide cutoff insert from the CoroCut 1-2 series, designed for parting and grooving operations on CNC lathes and turning centers. It carries manufacturer grade 1125 and features a TiAlN coating applied via PVD process, which improves wear resistance and extends tool life in demanding materials. The insert delivers a 6.00 mm (0.2362 inch) cutting width with a neutral lead angle and a 0.40 mm corner radius. A 7-degree relief angle reduces cutting forces and friction at the workpiece interface. This insert is installed and managed by machinists, toolroom technicians, and CNC setup personnel.

This insert is suited for parting-off and deep grooving applications in turning operations on ferrous and non-ferrous materials. The CoroCut 1-2 series is built around a clamp-style insert holding method, making it compatible with corresponding CoroCut 1-2 toolholders designed for the K insert seat size. The neutral hand orientation supports use on both conventional and Swiss-style turning setups. Maximum depth of cut reaches 23.50 mm (0.9252 inch), covering a wide range of bar stock diameters. The CR chipbreaker geometry helps control chip flow in continuous grooving cuts.

Key Features

• Solid carbide construction with PVD TiAlN coating for wear and heat resistance
• 6.00 mm cutting width, suitable for standard parting and grooving operations
• Maximum depth of cut of 23.50 mm (0.9252 inch)
• 0.40 mm corner radius with 7-degree relief angle reduces cutting forces
• Neutral lead angle and neutral hand for flexible machine compatibility
• CR chipbreaker geometry aids chip control in grooving cuts

Compatibility

Designed for use with CoroCut 1-2 series toolholders accepting the K insert seat size and a clamp-style holding method. Insert style is N123x2 per the manufacturer attribute designation. Refer to the manufacturers catalog number N123K2-0600-0004-CR 1125 when cross-referencing toolholder compatibility charts.

Installation Notes

Installation is performed by qualified machinists or CNC toolroom technicians. Power down and lock out the machine spindle before changing inserts. Seat the insert fully in the pocket and verify the clamp is torqued according to the toolholder manufacturers specification before resuming cuts. Inspect the insert seat and clamp for damage or chip buildup each time an insert is indexed or replaced.
