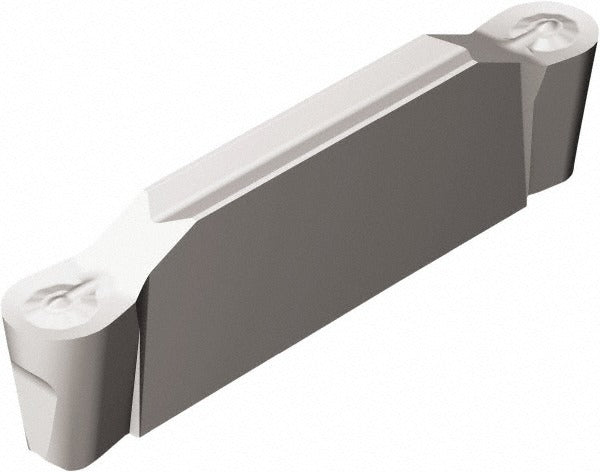

Sandvik Coromant 5736223 Grooving Insert Solid Carbide

Product Description

The SANDVIK COROMANT 5736223 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Built to CoroCut 1-2 series specifications, this uncoated H13A-grade insert features a 4.00 mm cutting width and a maximum depth of cut of 23.30 mm. The neutral hand orientation and positive rake geometry support consistent chip formation and surface finish control. The RO chip breaker configuration promotes reliable chip evacuation during grooving passes. This insert is handled and installed by CNC machinists and toolroom technicians working in production and job-shop environments.

This insert is suited for grooving operations in turning applications where precise width control and depth capacity are required. The 2.00 mm corner radius supports groove profile accuracy, while the H2 insert size fits standard CoroCut 1-2 toolholders with an H-seat configuration. Typical applications include external grooving, profiling, and parting on ferrous and non-ferrous workpieces. The ISO code for this insert is N123H2-0400-RO H13A.

Key Features

• 4.00 mm cutting width for precise groove dimensioning
• 23.30 mm maximum depth of cut suits deep external groove applications
• Solid carbide construction with bright uncoated finish for use on a range of workpiece materials
• Positive rake geometry with RO chip breaker for effective chip control
• 2.00 mm corner radius for profile accuracy at groove edges
• Neutral hand insert accommodates standard CoroCut 1-2 H-seat toolholders

Compatibility

Designed for use in SANDVIK COROMANT CoroCut 1-2 series toolholders with an H insert seat. Compatible with toolholder systems specifying an N123x2 insert style and H2 insert size. ISO designation N123H2-0400-RO H13A.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the turret is indexed to a safe position before changing inserts. Seat the insert firmly against the pocket locating surfaces and torque the clamping screw according to the toolholder manufacturer specifications. Inspect the insert seat for debris or damage before each insert change to maintain dimensional accuracy.
