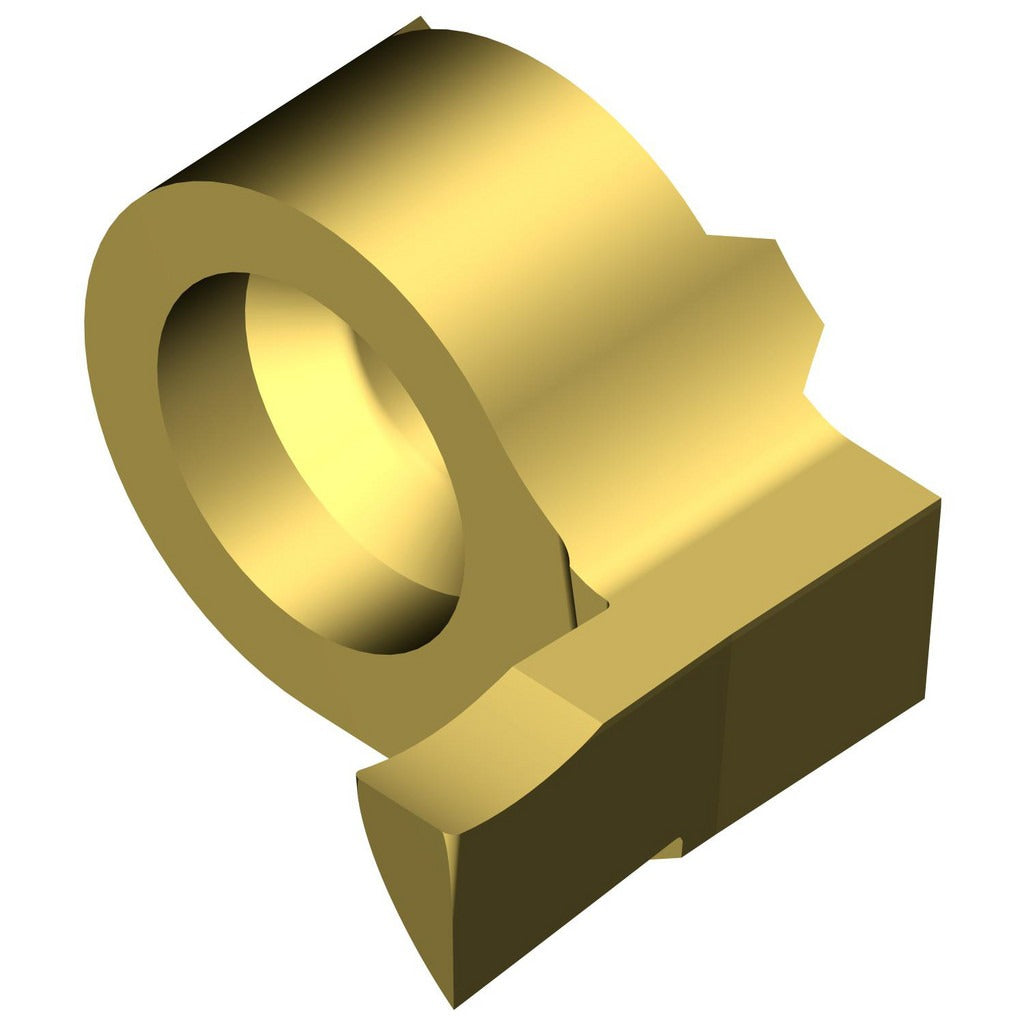

Sandvik Coromant 5735950 Grooving Insert MB09 2mm Corocut Mb

Product Description

The SANDVIK COROMANT 5735950 is a solid carbide grooving insert from the CoroCut MB series, designed for precision grooving and parting operations on CNC lathes and turning centers. It features a 2 mm cutting width, a maximum depth of cut of 5 mm, and a TiAlN/TiN PVD coating that extends tool life in demanding applications. Manufactured to Grade 1025 with a neutral rake angle of 2 degrees, this insert delivers consistent chip control and surface finish in both ferrous and non-ferrous materials. Installation is performed by qualified machinists or tooling technicians in production and job-shop environments.

This insert is suited for small-part grooving, face grooving, and parting on Swiss-type and small-diameter turning applications where tight tolerances and minimal tool footprint are required. The MB09 insert size fits the CoroCut MB toolholder system and is appropriate for both high-volume production and precision short-run work. The right-hand orientation designates the cutting direction and must be matched to the corresponding toolholder body. Its multi-use designation allows application in grooving, turning, and profiling within the specified depth and width range.

Key Features

• Solid carbide substrate with PVD-applied TiAlN/TiN coating for wear resistance and extended tool life
• 2 mm cutting width (0.0787 inches) with a corner radius of 0.20 mm for controlled groove geometry
• Maximum depth of cut of 5 mm (0.1969 inches); depth of cut range spans 5 mm to 10 mm (0.1500 to 0.2000 inches)
• Neutral rake angle at 2 degrees suits a broad range of workpiece materials
• Right-hand cutting orientation for standard CoroCut MB toolholder compatibility
• Multi-use tool rated for grooving, turning, and profiling within its specified range

Compatibility

Designed for use with SANDVIK COROMANT CoroCut MB series toolholders accepting MB09 insert seat size. ISO code MB-09FB200-02-14R 1025 and catalog number MB-09FB200-02-14R 1025 identify the precise toolholder and seat configuration required.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing the insert. Ensure the toolholder insert pocket is clean and free of chips or debris before seating the insert, as contamination affects seating accuracy and can cause premature failure. Torque the clamping screw to the toolholder manufacturer specification found in the CoroCut MB toolholder documentation - do not estimate clamping force.
