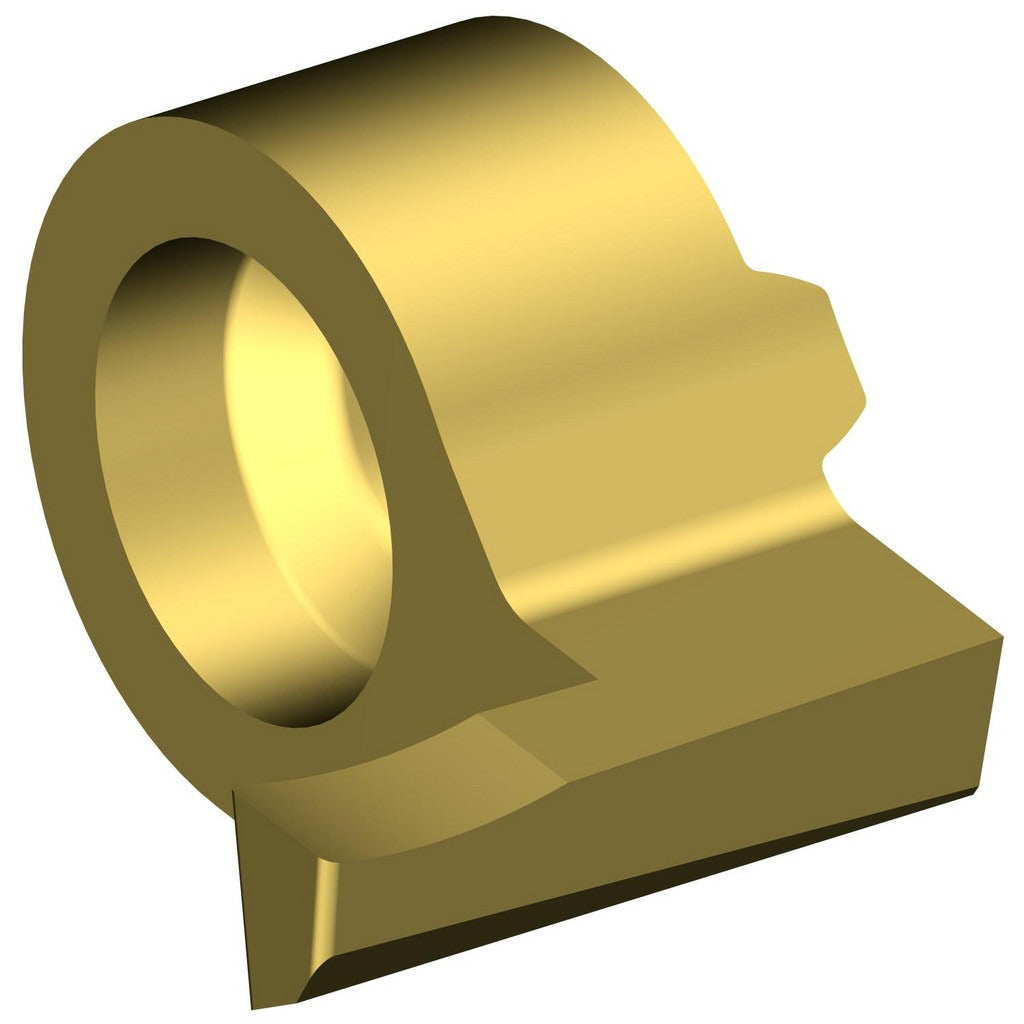

Sandvik Coromant 5735944 Grooving Insert 2mm Corocut Mb

Product Description

The SANDVIK COROMANT 5735944 is a solid carbide grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. It belongs to the CoroCut MB series and carries grade 1025 with a PVD-applied TiAlN/TiN coating for improved wear resistance and edge retention at elevated cutting temperatures. The insert features a 2 mm cutting width, a maximum depth of cut of 5 mm, and a neutral rake geometry with a 2-degree rake angle. Right-hand orientation and a 0.20 mm corner radius make it suited for tight-tolerance groove profiles on steel and other ferrous materials. Machinists and CNC tooling technicians are the primary installers of this insert.

This insert is intended for use in small-bore and face grooving applications where a narrow cutting width is required. The CoroCut MB tooling system is commonly deployed in Swiss-type turning, multi-spindle, and conventional CNC turning applications where minimal material removal per pass and repeatable groove geometry are critical. The ISO designation for this insert is MB-09FA200-02-14R 1025, and it fits insert seat size 9 holders within the CoroCut MB system. The multi-use capability of this insert allows it to be used across grooving and parting-off operations within compatible toolholders.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for extended tool life
• 2 mm cutting width with a 0.20 mm corner radius for tight groove tolerances
• Maximum depth of cut of 5 mm, within the 5 mm to 10 mm depth-of-cut range for this seat size
• Neutral rake geometry with a 2-degree rake angle
• Right-hand insert orientation for standard lathe setups
• Multi-use design compatible with both grooving and parting-off operations

Compatibility

This insert fits CoroCut MB series toolholders requiring insert seat size 9, as identified by ISO code MB-09FA200-02-14R 1025. No additional specific compatible model numbers or system families were stated in the available product data.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling technician. The machine spindle must be fully stopped and the machine placed in a safe, locked-out state before seating or removing inserts. Use the appropriate torx or clamping key specified for the CoroCut MB toolholder to secure the insert; do not overtighten by hand. Verify insert seating and orientation before resuming any cutting operation.
