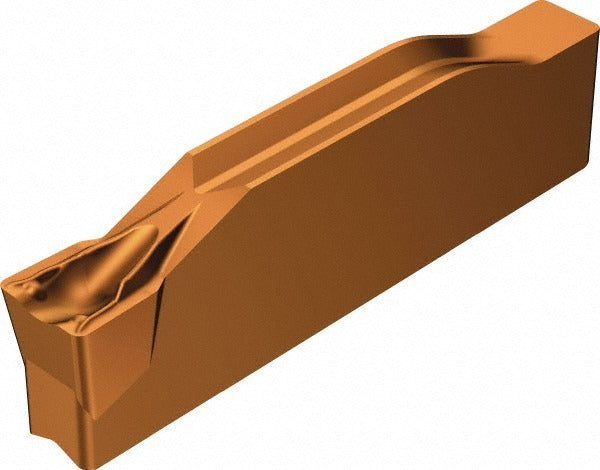

Sandvik Coromant 5735922 Grooving Insert Solid Carbide

Product Description

The SANDVIK COROMANT 5735922 is a solid carbide grooving insert designed for precision external and internal grooving operations on CNC turning centers and lathes. Manufactured to ISO code N123H1-0400-0004-TF 1125, it features a 4.00 mm cutting width and a maximum depth of cut of 2.20 mm, making it suited for shallow, controlled grooving passes. The TiAlN PVD coating enhances wear resistance and tool life at elevated cutting temperatures. The positive rake geometry combined with the TF chip breaker promotes efficient chip control and reduces cutting forces during grooving. This insert is installed by machinists and CNC tooling technicians working in metal-cutting environments.

This insert belongs to the CoroCut 1-2 series, which is designed for grooving and parting-off operations in both light and medium-duty cutting conditions. It is suited for use on CNC turning centers handling ferrous and non-ferrous workpiece materials where consistent groove geometry and surface finish are required. The neutral hand orientation allows flexible toolholder pairing across a range of setup configurations. The H1 insert size and H seat designation match CoroCut 1-2 compatible toolholders. This insert is applicable in precision manufacturing, job shop, and production turning environments.

Key Features

• 4.00 mm cutting width with a 0.40 mm corner radius for controlled groove profile accuracy
• Maximum depth of cut of 2.20 mm, with a recommended range of 2.00 to 3.00 mm
• Solid carbide substrate with TiAlN PVD coating for extended wear resistance
• Positive rake geometry with TF chip breaker for efficient chip evacuation
• Neutral hand orientation for broad toolholder compatibility
• Part of the CoroCut 1-2 series for grooving and parting-off applications

Compatibility

Designed for use with CoroCut 1-2 series toolholders that accept H1 insert size with H seat designation. Refer to SANDVIK COROMANT toolholder documentation to confirm fitment with your specific holder configuration before installation.

Installation Notes

This insert is installed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Seat the insert fully and securely in the toolholder pocket using the manufacturer-specified clamping mechanism before resuming cutting operations. Follow applicable shop safety procedures and consult toolholder documentation for torque and clamping guidance.
