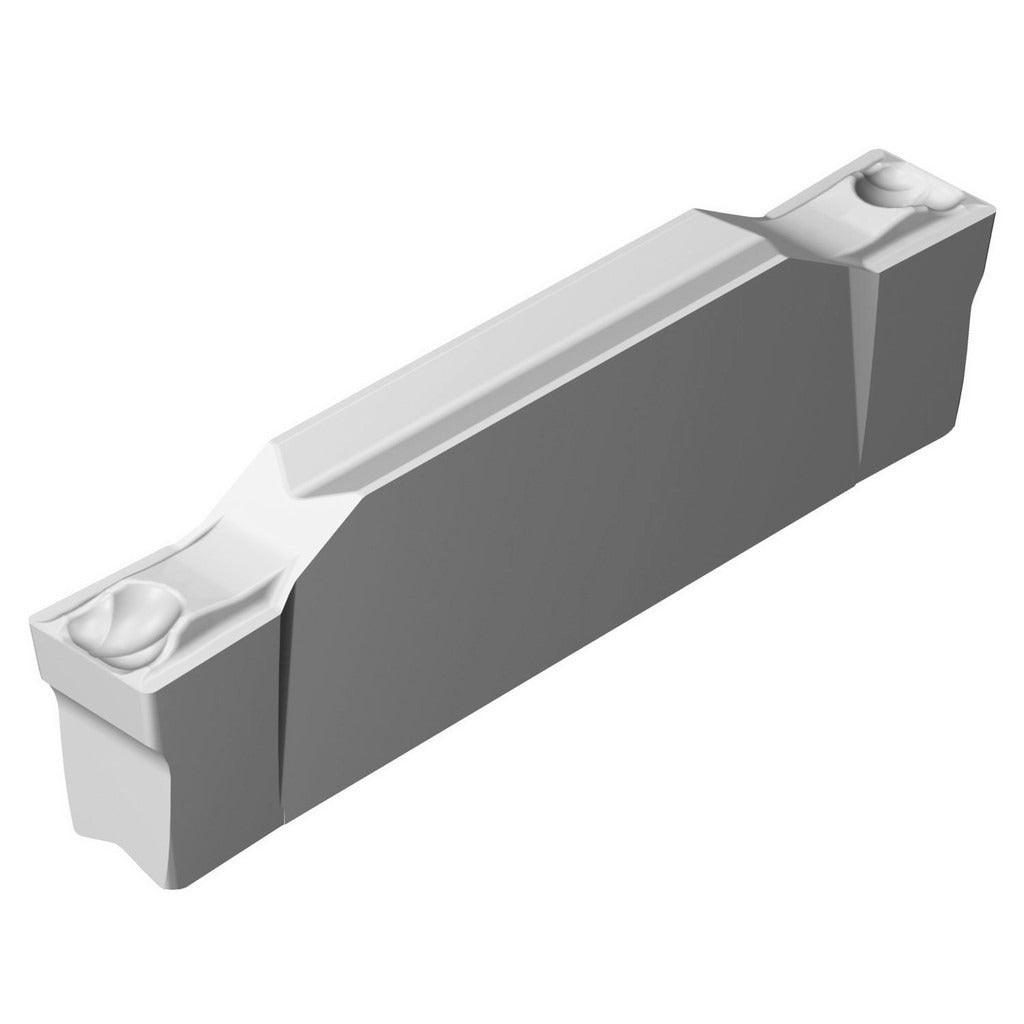

Sandvik Coromant 5735893 Grooving Insert Solid Carbide

Product Description

The SANDVIK COROMANT 5735893 is a solid carbide grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. It carries the ISO code N123F2-0239-0002-GF 1105 and belongs to the CoroCut 1-2 series, a system engineered for reliable chip control in grooving and parting applications. The insert features a TiAlN2 coating applied via PVD process, which provides thermal resistance and extended tool life in a wide range of workpiece materials. The cutting width measures 2.39 mm (0.0941 inches), and the maximum depth of cut reaches 19.20 mm (0.7559 inches). Manufacturer grade is 1105, and the chip breaker style is GF. This insert is installed by machinists and tooling specialists working in production and job shop environments.

This insert is suited for grooving operations where consistent chip evacuation and dimensional accuracy are critical. The GF chip breaker geometry is optimized for finishing and light-to-medium grooving cuts. The neutral hand orientation makes it adaptable across a range of toolholder configurations within the CoroCut 1-2 system. Typical applications include groove turning on steel, stainless steel, and similar materials on CNC turning equipment. The multi-use designation confirms this insert is compatible with more than one cutting edge configuration within the toolholder system. This insert is sold individually and requires a minimum order of 10 units per order cycle.

Key Features

• Solid carbide substrate with PVD-applied TiAlN2 coating for thermal and wear resistance
• Cutting width of 2.39 mm (0.0941 inches) with a corner radius of 0.20 mm (0.0079 inches)
• Maximum depth of cut of 19.20 mm (0.7559 inches); effective depth-of-cut range from 10.00 mm to 20.00 mm
• GF chip breaker style designed for controlled chip formation in finishing grooving passes
• Neutral rake orientation with a 7-degree rake angle for balanced cutting forces
• Multi-use insert compatible with CoroCut 1-2 series toolholders

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders accepting insert seat size F. ISO code N123F2-0239-0002-GF 1105 identifies the precise toolholder and seat interface required.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians on CNC turning equipment. Ensure the machine spindle is fully stopped and the turret is in a safe index position before changing inserts. Seat the insert fully against the pocket locating surfaces before tightening the clamping screw to the toolholder manufacturer's specified procedure. Do not regrind or recoat PVD-coated carbide inserts, as this compromises coating integrity and edge geometry.
