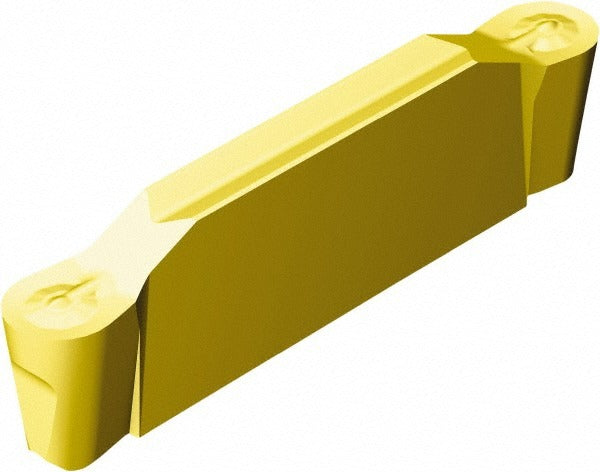

Sandvik Coromant 5735860 Grooving Insert Corocut 1-2

Product Description

The SANDVIK COROMANT 5735860 is a solid carbide grooving insert engineered for precision external grooving and parting operations on CNC lathes and turning centers. Built to CoroCut 1-2 series tooling standards, it features a multi-layer MT-CVD coating of TiCN, Al2O3, and TiN for wear resistance and thermal stability at the cutting edge. The insert carries a neutral hand orientation with a positive rake geometry, a 3.17 mm cutting width, and a maximum depth of cut of 18.60 mm. The RO chip breaker geometry is suited for controlled chip formation in a range of workpiece materials. Machining professionals and CNC setup technicians install this insert in compatible CoroCut 1-2 toolholders for high-repeatability grooving work.

This insert is used in production turning environments where consistent groove width and depth control are critical. The F2 insert size and F seat designation match CoroCut 1-2 series toolholders configured for this pocket geometry. The ISO code N123F2-0318-RO S05F identifies the exact grade and geometry for cross-referencing with SANDVIK COROMANT toolholder compatibility charts. Applicable in both roughing and finishing passes within the rated depth-of-cut range of 10.00 mm to 20.00 mm, this insert suits ferrous and non-ferrous turning applications in job shop and production environments.

Key Features

• MT-CVD multi-layer coating: TiCN, Al2O3, TiN for extended tool life and thermal resistance
• 3.17 mm cutting width with a 1.58 mm corner radius for accurate groove profiling
• Maximum depth of cut of 18.60 mm supports deep grooving applications
• Positive rake angle and RO chip breaker geometry for controlled chip evacuation
• Neutral hand orientation suits standard CoroCut 1-2 toolholder setups
• Multi-use insert designation allows use across a range of grooving and parting applications

Compatibility

Designed for use with CoroCut 1-2 series toolholders accepting an F seat insert size with the N123x2 insert style. ISO designation N123F2-0318-RO S05F should be used to confirm toolholder pocket compatibility with SANDVIK COROMANT documentation.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. The machine spindle must be stopped and the toolholder fully secured before seating or removing the insert. Use the appropriate SANDVIK COROMANT torx or clamping key for the CoroCut 1-2 toolholder to achieve correct clamping force without overtightening. Verify insert seating and alignment before resuming cutting operations.
