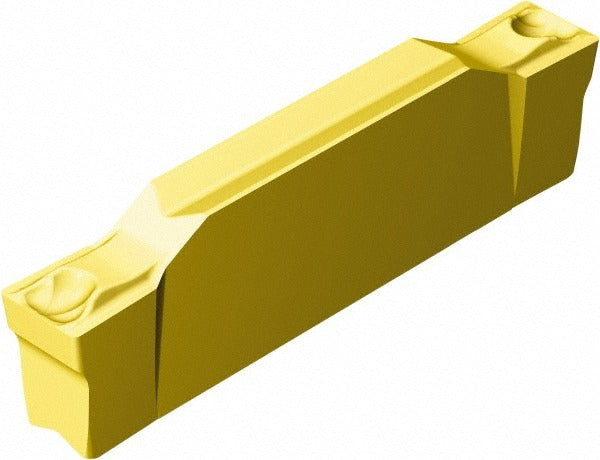

Sandvik Coromant 5735779 Grooving Insert Solid Carbide

Product Description

The SANDVIK COROMANT 5735779 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. It carries manufacturer grade 1005 with a PVD-applied TiAlN/TiN coating that improves wear resistance and edge retention in demanding cutting conditions. The insert features a 2.00 mm cutting width, a maximum depth of cut of 19.20 mm, and a neutral hand orientation. A 0.20 mm corner radius and GF chip breaker geometry support controlled chip formation during finish and semi-finish grooving passes. Machinists, tool and die technicians, and CNC operators working in production turning environments will find this insert suited to tight-tolerance groove profiles.

This insert belongs to the CoroCut 1-2 series and is intended for use in compatible SANDVIK COROMANT CoroCut 1-2 grooving toolholders and blade systems. Typical applications include external grooving, face grooving, and parting on a range of workpiece materials where a PVD-coated solid carbide grade offers the required edge toughness and surface finish. The neutral rake angle of 7 degrees and insert size E seat make it appropriate for standard CoroCut 1-2 tooling setups in both high-volume production and precision job shop environments.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for improved wear and thermal resistance
• 2.00 mm cutting width with maximum depth of cut of 19.20 mm
• GF chip breaker geometry for controlled chip evacuation during finish grooving
• Neutral hand orientation compatible with standard CoroCut 1-2 toolholders
• 0.20 mm corner radius supports tight-tolerance groove profiles
• Multi-use insert design with 7-degree rake angle for balanced cutting performance

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series grooving toolholders and blade systems accepting insert seat size E. ISO code N123E2-0200-0002-GF 1005 identifies the exact insert geometry for toolholder matching.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine in a full stop, zero-energy state before changing inserts. Use the correct torque wrench and clamping screw specified for the CoroCut 1-2 holder to seat the insert properly — do not overtighten by feel alone. Inspect the insert pocket and clamping components for chips or debris before seating the new insert. Follow the toolholder manufacturer guidelines for offset and runout verification after insert change.
