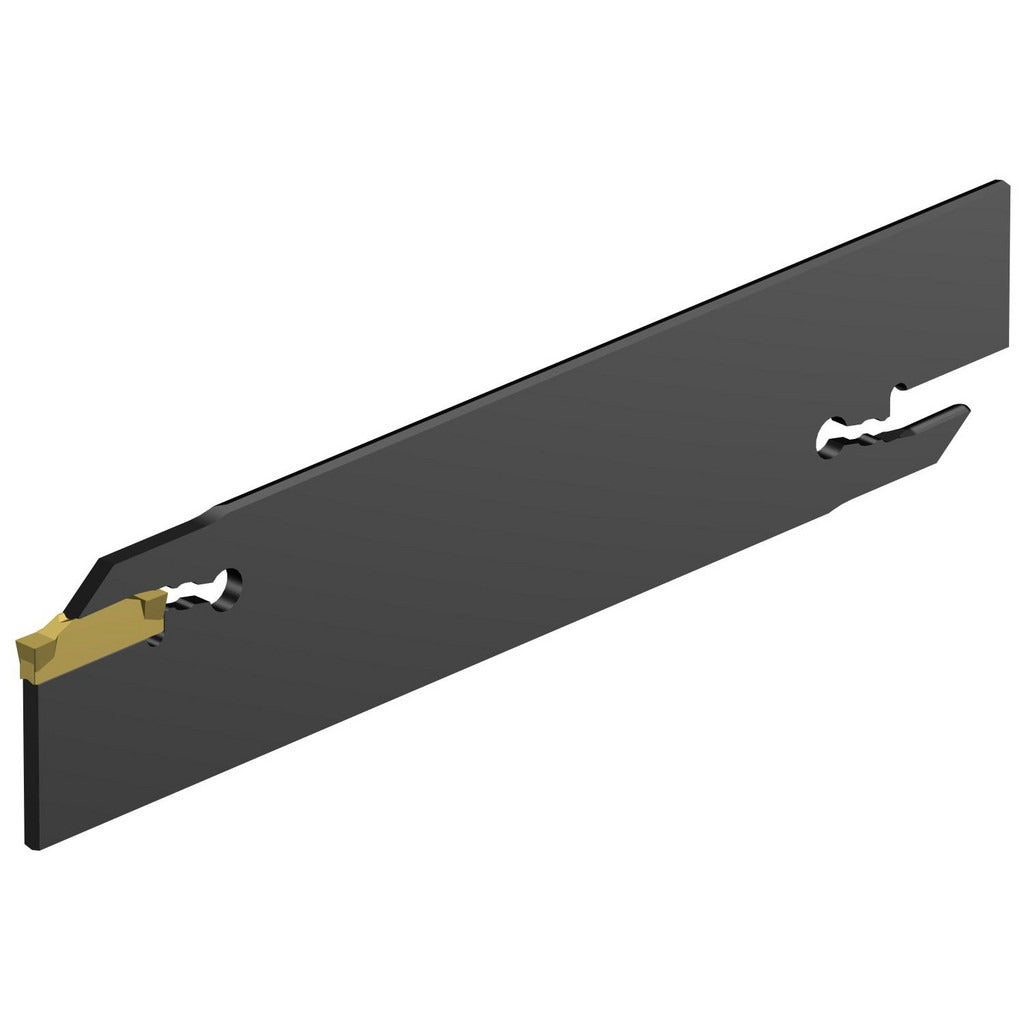

Sandvik Coromant 5735747 Indexable Cutoff Blade

Product Description

The SANDVIK COROMANT 5735747 is a double-end, neutral-hand indexable cutoff blade designed for parting and grooving operations on CNC lathes and turning centers. It measures 5.9055 inches in overall length, 1.256 inches in blade height, and 0.0886 inches in blade width, making it well-suited for precision cutoff work where tight tolerances and repeatable depth control are required. The blade uses a clamp-style insert holding method and accepts N123G2-0300-0003-TF compatible inserts in insert size code G. With a maximum depth of cut of 2.165 inches, it handles a broad range of bar stock and workpiece diameters. This part is installed by machinists and CNC tooling technicians in production and job-shop turning environments.

The 5735747 belongs to the Corocut 1-2 series, a line engineered for parting and grooving applications in external turning operations. It is appropriate for use on both production-volume and short-run turning setups where neutral cutting direction is required. The double-end design allows the blade to be flipped when one end shows wear, extending usable tool life before replacement. Typical applications include cutoff operations on ferrous and non-ferrous bar stock in both light and medium-duty turning environments.

Key Features

• Double-end design extends service life by allowing the blade to be reversed when one end wears
• Neutral cutting direction suits standard right-hand and left-hand setups without dedicated hand-specific tooling
• Clamp-style insert retention provides secure, repeatable insert indexing under cutting loads
• Maximum depth of cut of 2.165 inches accommodates a wide range of workpiece diameters
• Blade Style N123..A2 accepts N123G2-0300-0003-TF inserts with size code G seat
• Part of the Corocut 1-2 series, designed specifically for parting and grooving applications

Compatibility

Designed for use with compatible insert style N123G2-0300-0003-TF, insert size code G, within the Corocut 1-2 series tooling system. Confirm toolholder and insert compatibility against current SANDVIK COROMANT Corocut 1-2 series documentation before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before mounting or removing the blade assembly. Ensure the insert seat and clamping surfaces are clean and free of chips or debris before seating a new insert. Follow the machine tool manufacturer and SANDVIK COROMANT tooling documentation for proper clamping torque and blade seating procedures.
