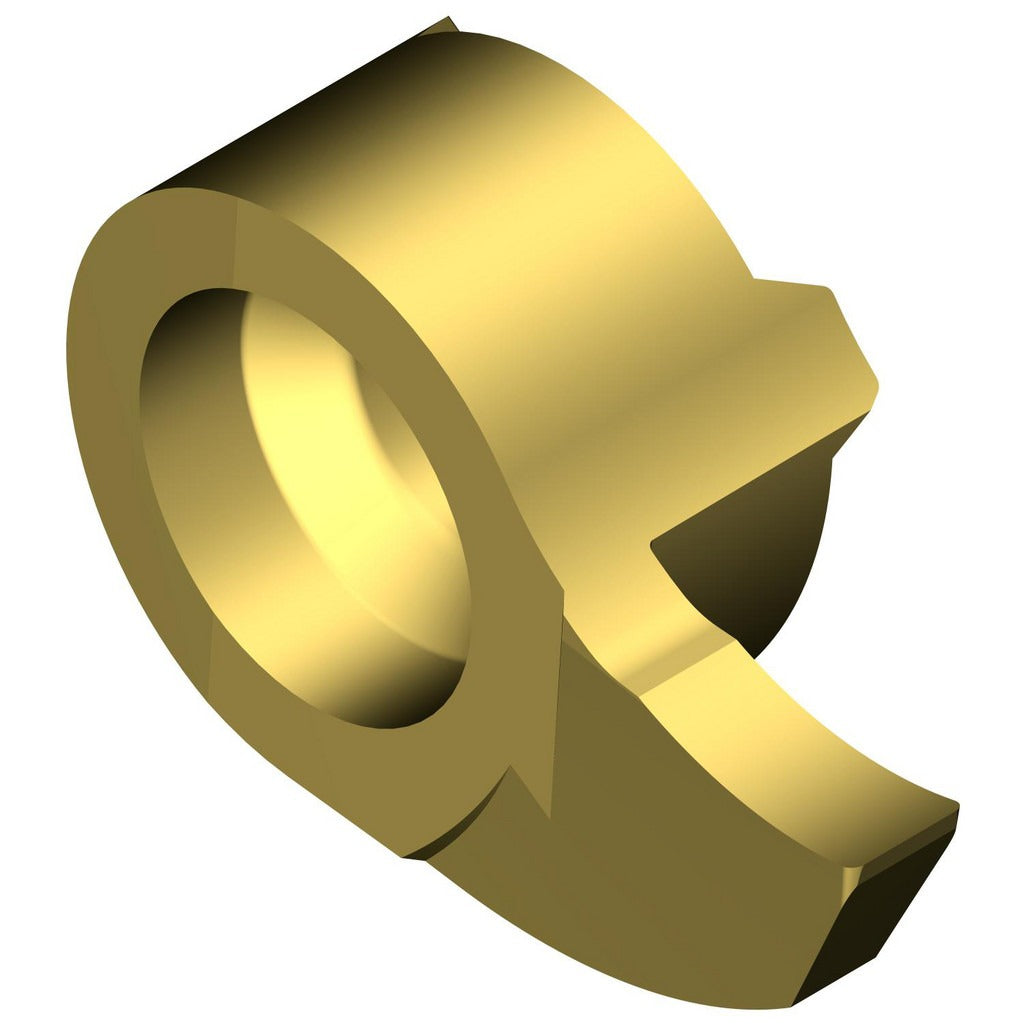

Sandvik Coromant 5735719 Grooving Insert MB09 1025 Carbide

Product Description

The SANDVIK COROMANT 5735719 is a solid carbide grooving insert designed for precision grooving operations on CNC lathes and turning centers. Belonging to the CoroCut MB series, this insert carries the ISO code MB09G2000216R1025 and is manufactured to grade 1025. It features a PVD-applied TiAlN/TiN coating for extended tool life in demanding cut conditions. The cutting width measures 2.00 mm (0.0787 inches) with a maximum depth of cut of 5.50 mm (0.2165 inches) and a corner radius of 0.20 mm (0.0079 inches). The right-hand orientation and 90-degree lead angle make it suited for standard external and face grooving applications. Machinists and CNC programmers specify this insert for controlled-width groove work in steel, stainless, and similar workpiece materials.

This insert fits typical applications in production turning environments where tight groove tolerances are required. The MB09 insert size is designed for use in compatible CoroCut MB toolholders and blade-style bodies that accept the MB09 seat configuration. It is appropriate for both light finishing passes and moderate stock-removal grooving where the maximum depth of cut range of 5.00 mm to 10.00 mm (0.2000 to 0.3000 inches) applies. Sold individually per package with a minimum order quantity of 5 units, this insert is a standard replacement consumable for shops running CoroCut MB tooling systems.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for wear resistance and thermal stability
• 2.00 mm cutting width (0.0787 inches) for precise narrow-groove work
• Maximum depth of cut of 5.50 mm (0.2165 inches); rated depth range 5.00 to 10.00 mm
• Corner radius of 0.20 mm (0.0079 inches) for controlled groove-bottom geometry
• Right-hand orientation with 90-degree lead angle
• Grade 1025, ISO code MB09G2000216R1025, CoroCut MB series

Compatibility

Designed for use in CoroCut MB series toolholders and blade bodies that accept MB09-size grooving inserts.

Installation Notes

Installation is performed by a qualified CNC machinist or tooling technician. Ensure the machine spindle is stopped and all motion is locked out before seating or replacing the insert. Use the appropriate torx or hex key specified by the toolholder manufacturer to secure the insert clamp to the correct seating torque per the toolholder documentation. Inspect the insert pocket and clamping surfaces for chips or debris before installing a new insert to ensure proper seating and runout.
