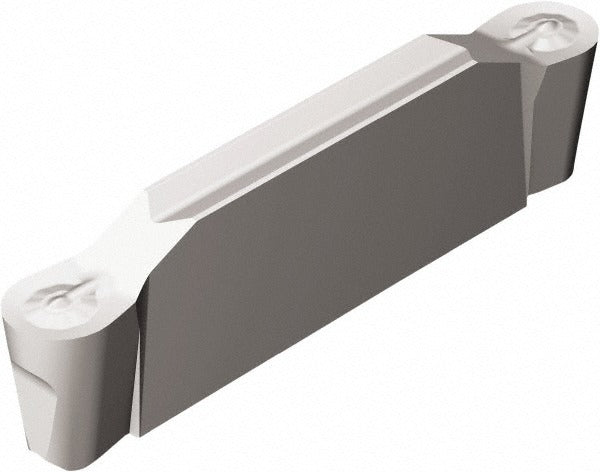

Sandvik Coromant 5735641 Grooving Insert Solid Carbide Corocut 1-2

Product Description

The SANDVIK COROMANT 5735641 is a solid carbide uncoated grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. Built to the CoroCut 1-2 series standard, this insert carries ISO code N123E2-0200-RO H13A and features a 2.00 mm cutting width, a maximum depth of cut of 19.20 mm, and a 1.00 mm corner radius. The neutral hand orientation makes it suitable for straight-in grooving cuts. The bright, uncoated H13A substrate delivers consistent edge integrity across a range of workpiece materials without the thermal concerns associated with coated grades.

This insert is intended for grooving, parting, and profiling applications on metalworking lathes. The CoroCut 1-2 platform is commonly used in production turning environments handling medium to small part diameters. The RO chip breaker geometry and positive rake angle promote controlled chip formation during grooving passes. Maximum depth of cut range spans 10.00 mm to 20.00 mm, making this insert appropriate for moderate-depth groove work. Machinists and CNC operators working in job shops, aerospace component manufacturing, and general precision machining will encounter this insert in standard turning toolholders configured for the E seat size.

Key Features

• Solid carbide construction with bright uncoated finish for consistent edge performance
• 2.00 mm cutting width with a 1.00 mm corner radius for accurate groove geometry
• Maximum depth of cut of 19.20 mm suitable for moderate to deep groove profiles
• Neutral hand orientation compatible with straight-in grooving setups
• RO chip breaker with positive rake geometry for controlled chip evacuation
• CoroCut 1-2 series platform with E2 insert seat size for broad toolholder compatibility

Compatibility

Designed for use in SANDVIK COROMANT CoroCut 1-2 series toolholders configured for E seat size inserts. ISO code N123E2-0200-RO H13A identifies the exact toolholder interface and insert geometry required for proper seating.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or CNC setup technician following the toolholder manufacturer's torque and clamping procedures. Power down and lock out the machine spindle before changing inserts. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Do not exceed the maximum depth of cut rating for this insert grade and geometry.
