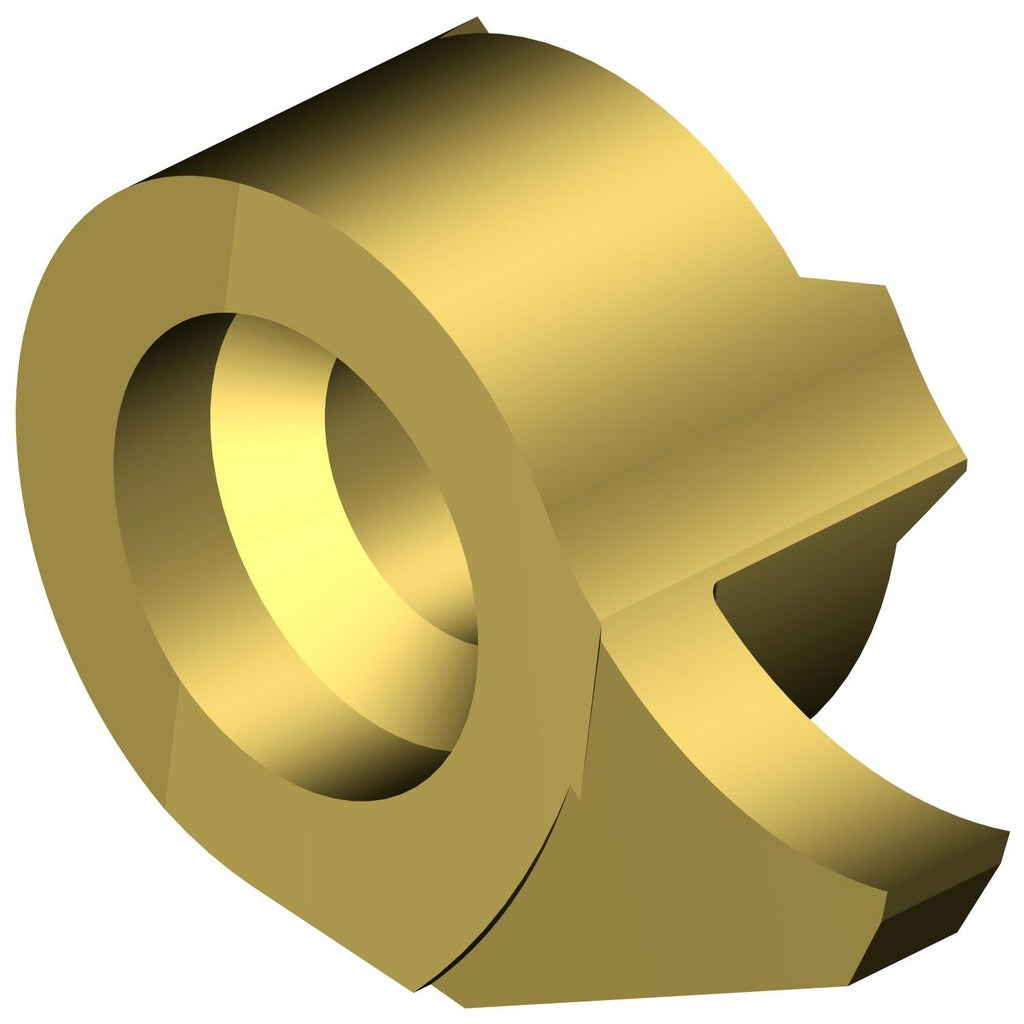

Sandvik Coromant 5735636 Grooving Insert Corocut Mb 1025

Product Description

The SANDVIK COROMANT 5735636 is a solid carbide grooving insert in the CoroCut MB series, designed for precision grooving operations on CNC lathes and turning centers. It carries a PVD-applied TiAlN/TiN coating and a manufacturer grade of 1025, which provides wear resistance and thermal stability during interrupted cuts and continuous grooving passes. The insert features a 1.5 mm cutting width and a maximum depth of cut of 3.4 mm, making it suited for small-bore internal grooving and parting work where tight tolerances and consistent surface finish are required. A neutral rake geometry combined with a 2-degree rake angle supports stable chip control across a range of workpiece materials.

This insert is used in metal cutting applications on CNC turning equipment where small-diameter internal grooving is the primary operation. The right-hand orientation and 90-degree lead angle are typical for axial grooving setups in production and job-shop environments. It is installed by machinists and CNC tooling technicians working with the CoroCut MB toolholder system. The maximum depth of cut range of 3.0 mm to 4.0 mm makes it applicable to components requiring precise groove geometry in both prototype and high-volume production runs.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for wear resistance and edge integrity
• 1.5 mm cutting width for precise small-diameter grooving
• Maximum depth of cut of 3.4 mm, within a range of 3.0 mm to 4.0 mm
• Right-hand, neutral rake geometry with a 2-degree rake angle for stable cutting action
• 90-degree lead angle suited for axial grooving setups
• Multi-use capability across compatible CoroCut MB toolholder configurations

Compatibility

Designed for use with the SANDVIK COROMANT CoroCut MB toolholder system. ISO code MB-07G150-00-12R 1025 and insert seat size 7 define the required holder compatibility. Verify toolholder seat size and clamping system before installation.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist or CNC tooling technician with the machine fully powered down and in a safe state. Use the correct torque driver and clamp screw specified for the CoroCut MB toolholder to avoid insert seat damage. Inspect the insert seat for chips or debris before seating the new insert. Do not exceed the stated maximum depth of cut range during operation.
