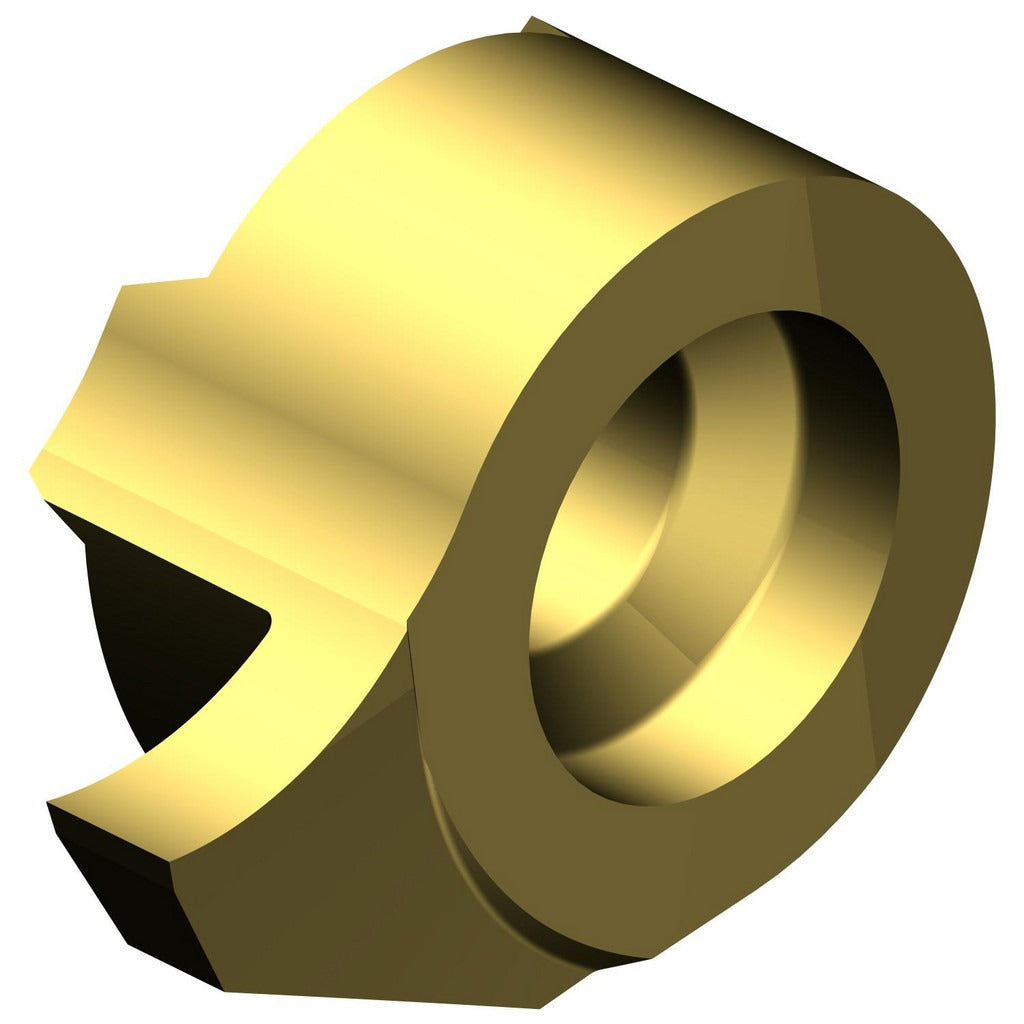

Sandvik Coromant 5735632 Grooving Insert MB07 1025 Carbide

Product Description

The SANDVIK COROMANT 5735632 is a solid carbide grooving insert designed for precision grooving operations on CNC lathes and turning centers. Part of the CoroCut MB series, this left-hand insert carries a PVD-applied TiAlN/TiN coating that improves wear resistance and extends tool life in demanding cutting conditions. The insert has a cutting width of 1.5 mm (0.0591 inches) and a maximum depth of cut of 2.8 mm (0.1102 inches), making it well suited for small-diameter grooving and parting applications where tight tolerances are required. It is installed and managed by machining professionals and toolroom technicians working with precision turning equipment.

This insert fits CoroCut MB toolholders and is intended for use in applications requiring left-hand grooving, such as internal grooving, face grooving, and small-part turning on Swiss-style or conventional CNC lathes. The 90-degree lead angle and 2-degree rake angle contribute to stable cutting performance on a range of workpiece materials. The insert size designation is MB07, and the ISO code is MB07G1500011L1025. It is sold individually but carries a minimum order quantity of 5 units.

Key Features

• Solid carbide construction with PVD TiAlN/TiN coating for extended wear resistance
• 1.5 mm cutting width (0.0591 inches) for precise, narrow groove profiles
• Maximum depth of cut of 2.8 mm (0.1102 inches); rated depth-of-cut range is 2.0 mm to 3.0 mm
• Left-hand insert orientation for compatible CoroCut MB toolholders
• 90-degree lead angle and 2-degree rake angle for stable, consistent chip control
• Manufacturer grade 1025 with ISO code MB07G1500011L1025

Compatibility

Designed for use with CoroCut MB series toolholders accepting MB07 insert style left-hand inserts. Confirm toolholder compatibility using the ISO code MB07G1500011L1025 before ordering.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before changing inserts. Seat the insert fully and evenly in the pocket and tighten the clamping screw to the toolholder manufacturer's specified torque using the appropriate Torx or hex key. Inspect the insert pocket for chips or debris before seating a new insert, as contamination can affect cutting geometry and surface finish.
