Sandvik Coromant 5735625 Grooving Insert 2mm Corocut Mb

Product Description

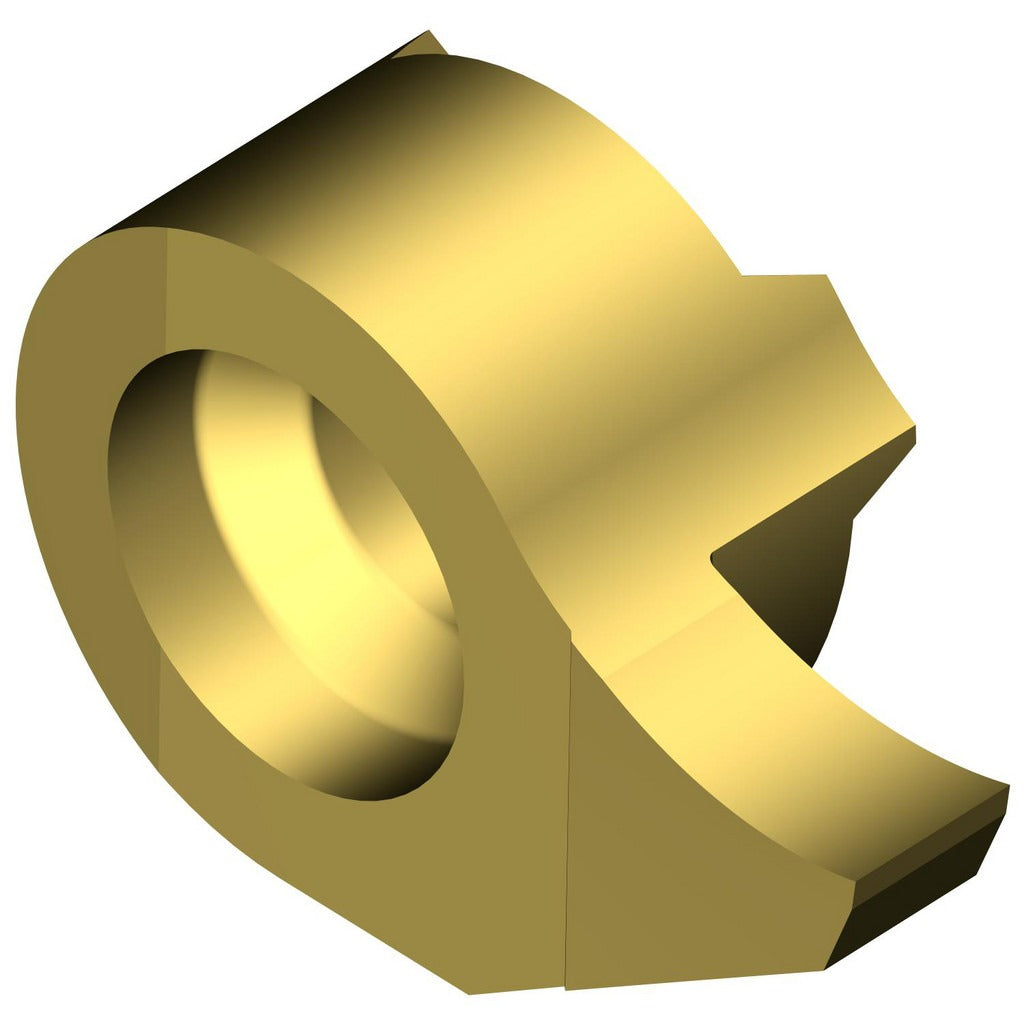

The SANDVIK COROMANT 5735625 is a solid carbide grooving insert in the CoroCut MB series, designed for precision grooving and parting operations on CNC lathes and turning centers. This MB-style insert carries a TiAlN/TiN PVD coating applied over a grade 1025 carbide substrate, providing wear resistance and thermal stability at the cutting edge. It delivers a 2.00 mm cutting width with a maximum depth of cut of 3.40 mm, making it well suited for small-diameter grooving applications. Right-hand orientation and a neutral rake with a 2.00-degree rake angle support consistent chip control. Machinists and CNC turning specialists install this insert as a replaceable cutting edge in compatible CoroCut MB toolholders.

This insert is used in precision turning applications where tight groove width tolerances and controlled chip evacuation are required. Typical use cases include small-part grooving, O-ring groove machining, and parting on Swiss-type and conventional CNC lathes. The MB-07 insert seat size targets small-bore and small-diameter workpieces. It is suited for both production and job-shop environments where consistent, repeatable groove geometry is critical. The ISO code for this insert is MB-07G200-00-12R 1025, which can be used for cross-referencing with compatible toolholding systems.

Key Features

• Solid carbide grade 1025 substrate with TiAlN/TiN PVD coating for extended tool life
• 2.00 mm cutting width for precise, repeatable groove dimensions
• Maximum depth of cut of 3.40 mm, within the 3.00-4.00 mm range class
• Right-hand cutting orientation with neutral rake and 2.00-degree rake angle
• MB-07 insert seat size designed for small-diameter CoroCut MB toolholders
• Multi-use capable insert suitable for grooving and light parting operations

Compatibility

Designed for use with CoroCut MB series toolholders accepting MB-07 insert seat size. ISO designation MB-07G200-00-12R 1025 can be used to identify compatible holders and confirm fitment within the CoroCut MB system.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing the insert. Ensure the insert pocket and clamping screw are clean and free of chips before seating the insert to avoid improper seating and premature edge failure. Follow the toolholder manufacturer's clamping torque guidance and do not overtighten, as solid carbide inserts are brittle under asymmetric clamping loads.
