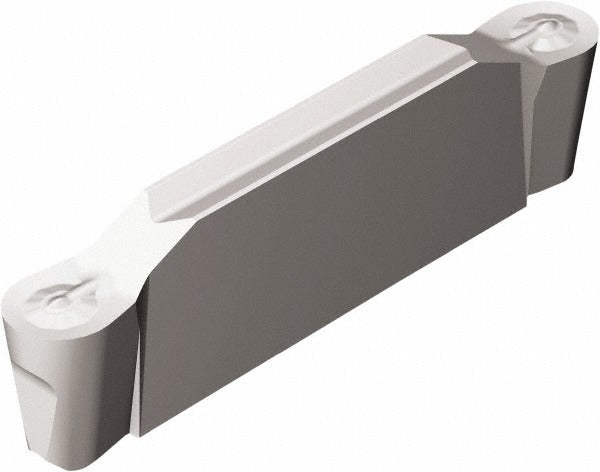

Sandvik Coromant 5735602 Grooving Insert Solid Carbide 3mm

Product Description

The SANDVIK COROMANT 5735602 is a solid carbide, uncoated grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Part of the CoroCut 1-2 series and carrying ISO code N123F2-0300-RO H13A, this neutral-hand insert delivers a 3.00 mm cutting width and a maximum depth of cut of 18.7 mm. The positive rake geometry and RO chip breaker promote efficient chip control and reduced cutting forces. The uncoated bright finish suits applications where base carbide grade H13A provides the necessary edge integrity. Machinists and CNC tool setup technicians install this insert into compatible CoroCut 1-2 toolholders for high-precision grooving work.

This insert is suited for grooving and parting operations on a range of workpiece materials in both production and job-shop environments. The CoroCut 1-2 platform is commonly applied in medium to high-volume turning operations on CNC lathes handling external grooves, parting-off, and face grooving where consistent groove width and depth repeatability are required. The 1.50 mm corner radius and 4.30 mm cutting height make this insert appropriate for groove profiles demanding tight dimensional tolerances. It is sold individually, with a minimum order quantity of 10 units.

Key Features

• Solid carbide construction, uncoated bright finish in H13A grade for edge sharpness and stability
• 3.00 mm cutting width with a maximum depth of cut of 18.7 mm
• Positive rake geometry with RO chip breaker for controlled chip evacuation
• Neutral hand orientation for flexible toolholder compatibility
• 1.50 mm corner radius for profile accuracy in tight-tolerance grooves
• Multi-use rated insert within the CoroCut 1-2 system

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders that accept insert seat size F with an F2 insert size designation. ISO code N123F2-0300-RO H13A identifies the exact insert geometry and grade for toolholder and catalog matching.

Installation Notes

Installation is performed by qualified CNC machinists or tool setup technicians familiar with indexable insert tooling systems. Power down and lock out the machine spindle before changing inserts. Seat the insert fully and squarely in the toolholder pocket and torque the clamping screw per the toolholder manufacturer specification. Inspect the insert seat for chips or debris before seating a new insert to avoid seating errors that affect groove dimensional accuracy.
