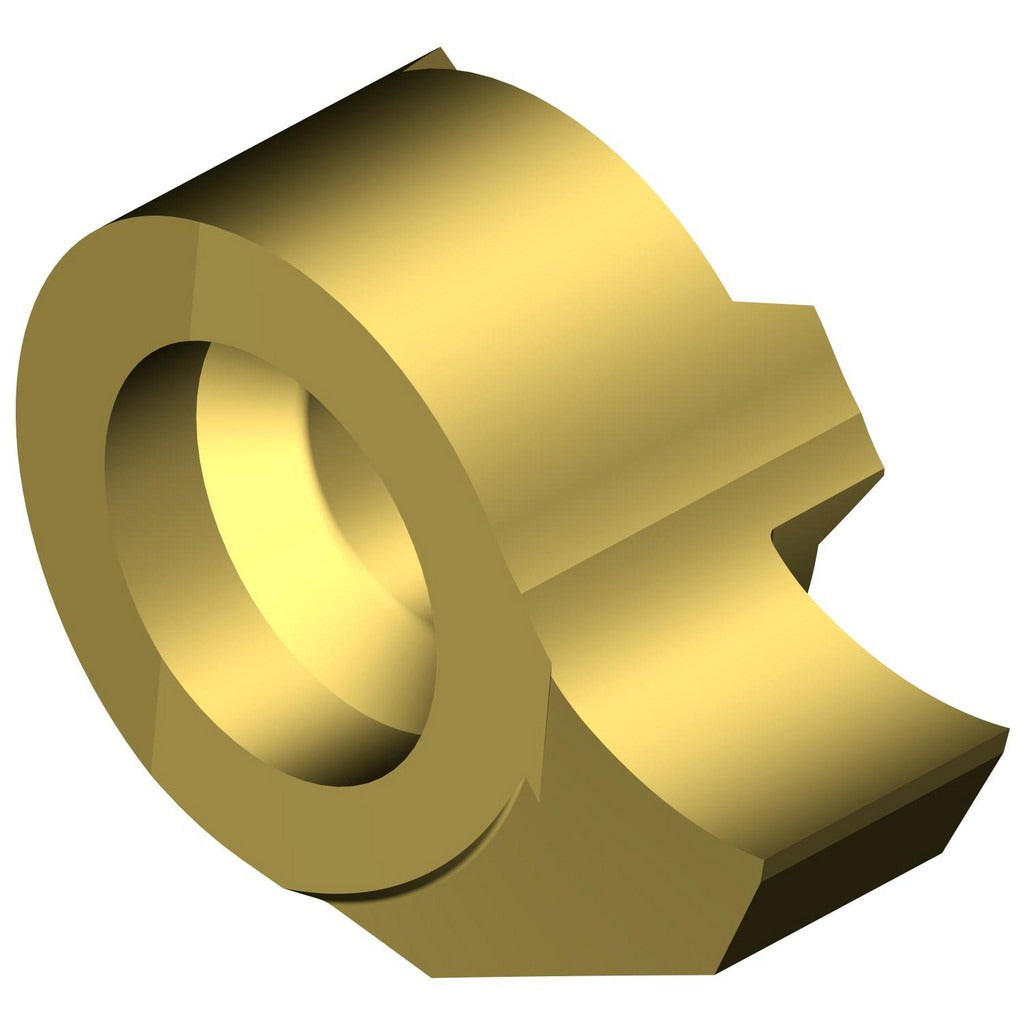

Sandvik Coromant 5735499 Grooving Insert MB07 1025

Product Description

The SANDVIK COROMANT 5735499 is a solid carbide grooving insert in the CoroCut MB series, designed for precision grooving and parting operations on CNC lathes and turning centers. It carries grade 1025 with a PVD-applied TiAlN/TiN coating for wear resistance and extended tool life. The insert features a right-hand cutting orientation, a neutral rake angle, a 3.18 mm cutting width, and a maximum depth of cut of 2.8 mm. It is installed by CNC machinists and toolroom technicians in production and job-shop environments where consistent, repeatable groove geometry is required.

This insert is suited for external grooving, undercutting, and parting-off operations in both ferrous and non-ferrous materials. The CoroCut MB series targets small-diameter grooving applications on Swiss-type and standard CNC lathes. The ISO code for this insert is MB-07G318-00-11R 1025, which also serves as the catalog reference number. It is sold individually but carries a minimum order quantity of 5 units, making it appropriate for stocking in production tooling inventories.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for wear resistance and thermal stability
• 3.18 mm cutting width with a maximum depth of cut of 2.8 mm
• Right-hand cutting orientation with neutral rake angle of 2.00 degrees
• Lead angle of 90 degrees for straight-wall groove profiles
• Insert size 07, seat size 7, compatible with CoroCut MB toolholders
• ISO code MB-07G318-00-11R 1025 for precise toolholder and catalog matching

Compatibility

Designed for use with SANDVIK COROMANT CoroCut MB series toolholders accepting insert size 07 and seat size 7. The ISO code MB-07G318-00-11R 1025 should be used to confirm toolholder compatibility before installation.

Installation Notes

This insert is seated and clamped by a qualified CNC machinist or toolroom technician following the toolholder manufacturer's clamping procedure. Shut down and lock out the machine spindle before changing inserts. Use the correct torx or hex key specified by the toolholder to achieve proper clamping without over-torquing the insert pocket. Inspect the insert seat for chips or debris before seating the new insert to ensure accurate positioning and prevent premature edge failure.
