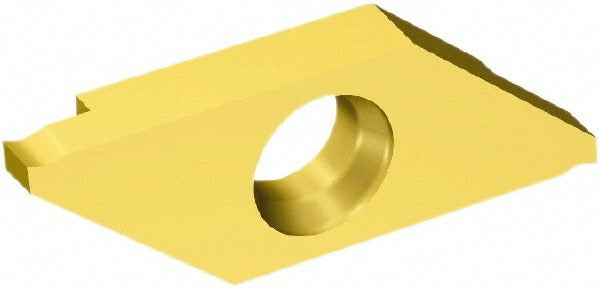

Sandvik Coromant 5735472 Grooving Insert Corocut Xs

Product Description

The SANDVIK COROMANT 5735472 is a solid carbide grooving insert for external grooving and parting operations on CNC lathes and turning centers. It carries a PVD-applied TiAlN/TiN coating, grade 1025, and fits the CoroCut XS insert system. The cutting width is 2.5 mm (0.0984 inches), maximum depth of cut is 3.7 mm (0.1457 inches), and the corner radius is 0.05 mm (0.002 inches). The right-hand orientation and neutral rake angle suit standard OD grooving setups. Machinists and CNC operators working with small-diameter components or narrow groove profiles are the primary users of this insert.

This insert is designed for small-part and Swiss-type turning applications where precision groove geometry and tight dimensional tolerances are required. The CoroCut XS platform is commonly applied in medical, watchmaking, electronics, and precision aerospace component machining where groove widths in the 2 to 4 mm range are typical. The MAG chip breaker geometry is suited for short-chipping and free-cutting materials in light to moderate depths of cut. Insert seat size 3 corresponds to compatible CoroCut XS toolholders designed for that seat designation.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for wear resistance and edge integrity
• 2.5 mm cutting width with maximum depth of cut 3.7 mm, covering the 3.00 to 4.00 mm depth range
• Corner radius 0.05 mm for sharp, well-defined groove shoulders
• Neutral rake, 6-degree rake angle with MAG chip breaker for controlled chip evacuation
• Right-hand insert orientation for standard OD grooving tool configurations
• Multi-use tool designation supports grooving and light profiling in a single insert

Compatibility

Designed for use in SANDVIK COROMANT CoroCut XS toolholders accepting insert seat size 3. ISO code MAGR 3 250 1025 identifies the direct toolholder compatibility reference within the CoroCut XS system.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician with the machine in a stopped, locked-out state before any insert change. Use the correct Torx or clamping key specified for the CoroCut XS toolholder to seat the insert fully and evenly. Inspect the insert pocket for chips or debris before seating a new insert. Do not exceed the maximum depth of cut of 3.7 mm in a single pass without confirming the toolholder and machine rigidity can support the load.
