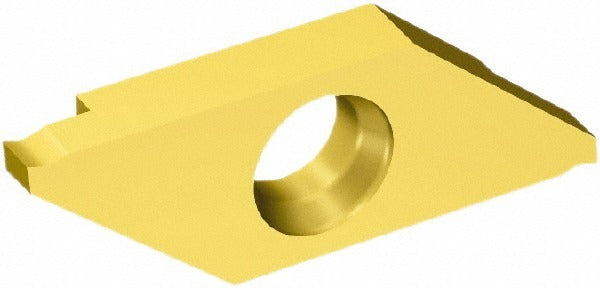

Sandvik Coromant 5735422 Cutoff Insert 1mm Corocut Xs

Product Description

The SANDVIK COROMANT 5735422 is a carbide cutoff and grooving insert designed for precision parting, grooving, and turning operations on CNC lathes and turning centers. Part of the CoroCut XS series, it features a 1.00 mm cutting width and a MAGL insert style with a left-hand orientation. The insert is held in place via screw clamping and carries a TiN/TiAlN coating applied through a PVD process, which supports extended tool life in demanding chip-forming conditions. Grade 1025 carbide provides the substrate performance needed for light-duty grooving on small-diameter workpieces.

This insert is suited for small-part machining environments where tight tolerances and minimal material removal widths are critical. The CoroCut XS series is engineered for grooving, parting, and turning on Swiss-type machines, sliding-head lathes, and compact turning centers. With a maximum depth of cut of 2.70 mm, it handles shallow grooves and cutoff operations where tool clearance and rigidity are at a premium. The MAG chipbreaker geometry assists in chip control during these light, precise cuts.

Key Features

• 1.00 mm cutting width for narrow grooving and parting operations
• MAGL insert style with left-hand orientation and screw holding method
• TiN/TiAlN PVD coating for wear resistance and thermal stability
• MAG chipbreaker geometry for controlled chip evacuation
• Maximum depth of cut of 2.70 mm suitable for shallow groove profiles
• Relief angle of 6 degrees with a 0.0020 inch corner radius for clean edge definition

Compatibility

Designed for use with SANDVIK COROMANT CoroCut XS series toolholders that accept MAGL style inserts with an insert seat size of 3. Verify toolholder designation and clamping screw compatibility before ordering.

Installation Notes

Installation of cutting inserts should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or replacing any insert. Use the manufacturer-recommended torque wrench and clamping screw when securing the insert to avoid seat damage or insert fracture. Inspect the insert seat and clamping screw for wear or debris before installation.
