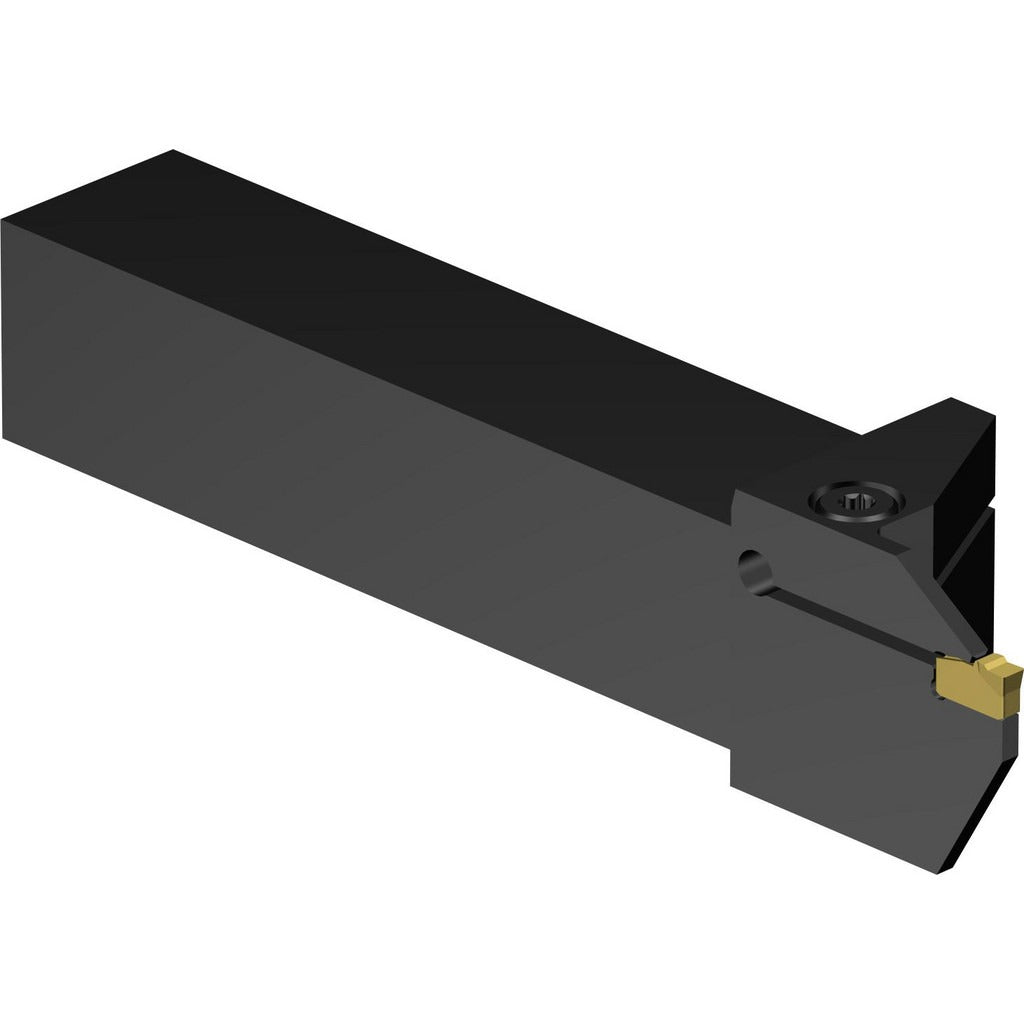

Sandvik Coromant 5733613 Grooving Cutoff Toolholder Lh

Product Description

The SANDVIK COROMANT 5733613 is an indexable grooving and cutoff toolholder in the T-Max Q-Cut series, designed for external grooving operations on CNC lathes and turning centers. This left-hand toolholder accepts N151.2-300-5E inserts secured by a clamp-style insert holding method, providing rigid, repeatable cutting edge positioning. The shank measures 1 inch by 1 inch in cross-section with a length of 4.386 inches, and overall assembly length reaches 6 inches back of bar to cutting edge. The groove width range spans 3.00 mm to 4.15 mm, with a maximum depth of cut of 20.07 mm (0.79 inches). Machinists and CNC operators working in precision turning applications install this holder in standard square-shank tool blocks.

This toolholder is suited for external grooving and parting-off operations in production turning environments, including aerospace, automotive, and general machining shops. The LF151.23 toolholder style is configured for left-hand cutting direction. Compatible insert seat size is 30.0. Coolant-through capability is not included in this model. The holder fits standard 1 inch by 1 inch shank pockets commonly found on turret-style tool blocks and manual or CNC lathes.

Key Features

• Left-hand cutting orientation for external grooving and cutoff operations
• Groove width range: 3.00 mm to 4.15 mm
• Maximum depth of cut: 20.07 mm (0.79 inches)
• Clamp-style insert holding for secure, repeatable insert seating
• Compatible with N151.2-300-5E inserts, insert seat size 30.0
• Part of the T-Max Q-Cut series for consistent grooving performance

Compatibility

Designed to accept N151.2-300-5E inserts with an insert seat size of 30.0. Part of the SANDVIK COROMANT T-Max Q-Cut series, toolholder style LF151.23-16-30.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. The machine spindle must be fully stopped and locked out before mounting or removing the toolholder from the turret. Torque the toolholder clamping screws to the machine or toolblock manufacturer specifications. Verify insert seating and clamp engagement before resuming cutting operations.
