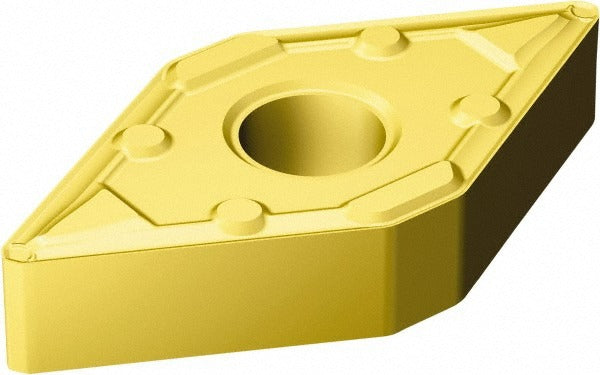

Sandvik Coromant 5733136 Turning Insert DNMX332-WF 3005

Product Description

The SANDVIK COROMANT 5733136 is a solid carbide turning insert in the T-Max P series, designed for precision metal-turning operations on CNC lathes and turning centers. This DNMX-style insert features a 55-degree parallelogram shape with a neutral hand orientation and carries a multilayer MTCVD coating of TiCN, Al2O3, and TiN for extended wear resistance and thermal stability. The inscribed circle measures 0.375 inches, the corner radius is 0.0313 inches, and the insert length is 0.4263 inches. It is held in place by clamp and pin mounting and is suited for medium to moderate cutting conditions where chip control and surface finish matter.

This insert is intended for turning applications where the primary workpiece material is cast iron or similar ISO K-classification materials. The X-style chip breaker geometry supports controlled chip evacuation during continuous and interrupted cuts. It is installed by licensed machinists and CNC operators in precision machining shops handling production turning, profiling, and finishing work. The T-Max P series is a widely used platform in industrial turning, and this insert fits compatible T-Max P toolholders designed for DNMX-style inserts with the appropriate pocket geometry.

Key Features

• Solid carbide construction with MTCVD multilayer TiCN, Al2O3, and TiN coating for heat and wear resistance
• 55-degree parallelogram insert shape (D-shape) with neutral hand for flexible toolholder compatibility
• X-style chip breaker geometry promotes consistent chip control during turning and profiling
• Corner radius of 0.0313 inches (0.79 mm) supports fine finishing and light profiling passes
• Maximum depth of cut of 0.4263 inches (10.83 mm) for productive material removal
• Clamp and pin insert holding method provides secure seating under cutting loads
• Manufacturer grade 3005 optimized for ISO K primary workpiece materials including cast iron

Compatibility

Designed for use in T-Max P series toolholders configured for DNMX-style inserts with a 55-degree parallelogram pocket, clamp and pin clamping method, and a 0.1875-inch hole diameter. Verify toolholder pocket geometry and insert size code 332 compatibility before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct torque wrench and manufacturer-specified clamping hardware to secure the insert in the pocket — do not overtighten or substitute clamping components. Inspect the insert pocket and locating surfaces for wear or debris before seating a replacement insert.
