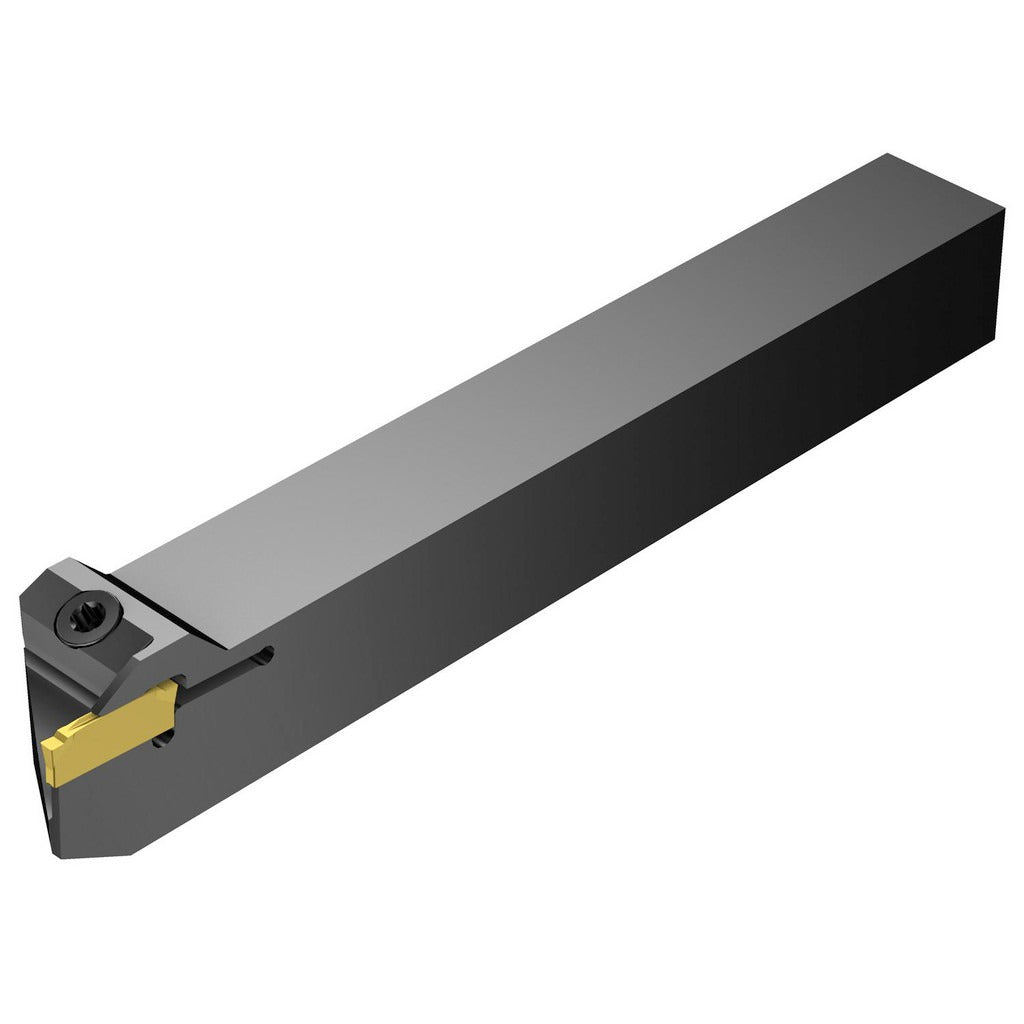

Sandvik Coromant 5732596 Indexable Grooving Toolholder

Product Description

The SANDVIK COROMANT 5732596 is a left-hand indexable grooving toolholder from the CoroCut 1-2 series, designed for internal or external grooving operations on CNC lathes and turning centers. It accepts N123E2 inserts with an E-size insert seat and uses a clamp-style insert holding method. The shank measures 12 mm x 12 mm (0.472 inches x 0.472 inches) with an overall length of 125 mm (4.921 inches). Maximum depth of cut is 11 mm (0.433 inches), and the maximum workpiece diameter is 22 mm (0.866 inches). The toolholder body is constructed from steel and is classified as a non-face grooving, multi-use tool suitable for a range of grooving applications.

This toolholder is suited for precision grooving work on small-diameter workpieces in production turning environments. Its compact shank size and left-hand cutting direction make it appropriate for tight-clearance internal grooving as well as external grooving passes. Machinists and CNC operators working in job shops, production facilities, and tool rooms will find this holder a standard fit for the CoroCut 1-2 system. It does not include coolant-through capability, so external coolant delivery should be planned accordingly during setup.

Key Features

• Left-hand cutting direction for internal or external grooving operations
• Accepts N123E2-0200-0002-CM inserts with E-size insert seat, clamp-style retention
• Maximum depth of cut: 11 mm (0.433 inches)
• Maximum workpiece diameter: 22 mm (0.866 inches)
• 12 mm x 12 mm steel shank with 125 mm (4.921 inches) overall length
• Multi-use tool compatible with the CoroCut 1-2 series system
• No coolant-through — external coolant application required

Compatibility

Designed for use with N123E2-0200-0002-CM inserts (compatible insert size code N123E2). Part of the SANDVIK COROMANT CoroCut 1-2 toolholder system, style F123. Verify insert grade and geometry selection against the workpiece material before use.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Before mounting, confirm the machine spindle is fully stopped and the machine is in a safe, locked-out state per facility lockout/tagout procedures. Secure the shank firmly in the tool turret or holder block to the machine manufacturer's specified clamping requirements. Verify insert seating and clamp torque using the appropriate SANDVIK COROMANT torque key for the N123E2 insert system before initiating a cut.
