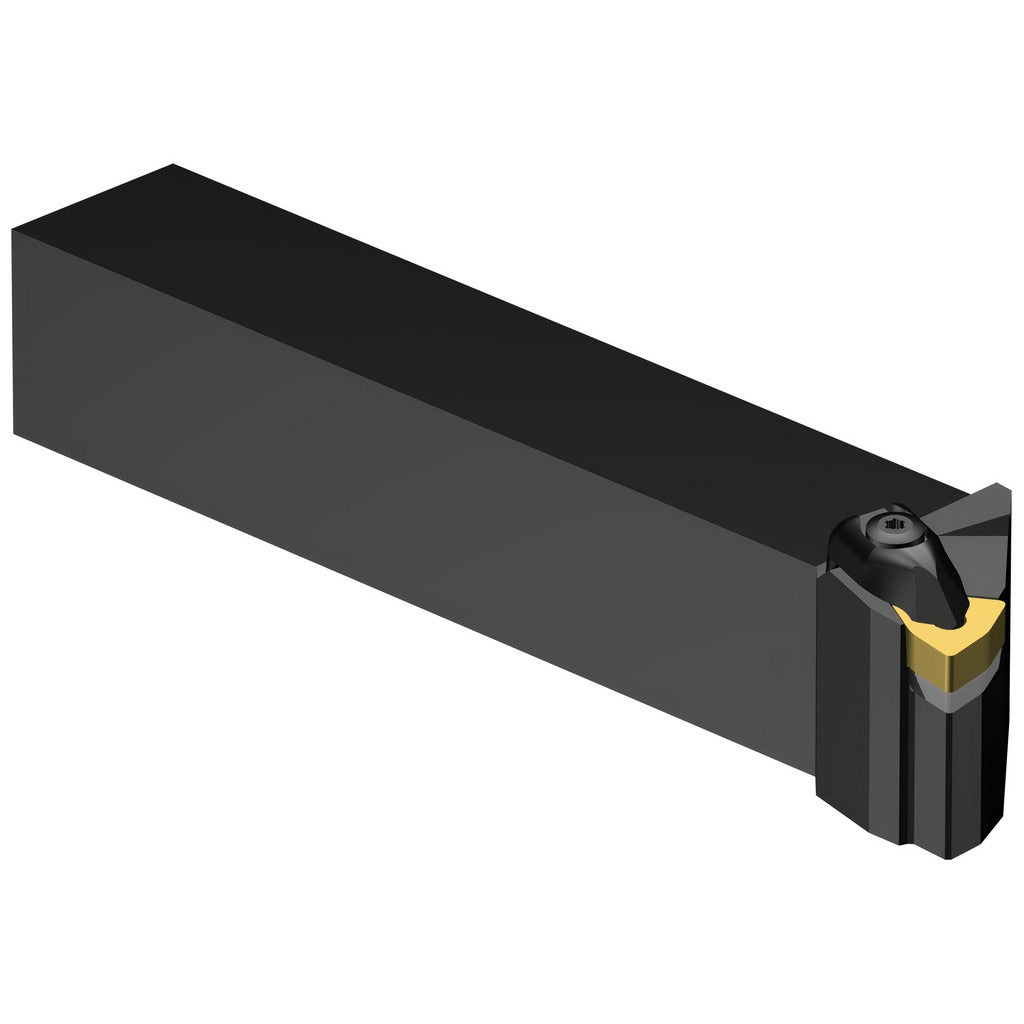

Sandvik Coromant 5732336 Turning Toolholder DWLNL163D Left Hand

Product Description

The SANDVIK COROMANT 5732336 is a left-hand indexable turning toolholder in the DWLNL style, designed for use with WNMG 332 inserts secured by a wedge clamping method. The shank measures 1 inch wide by 1 inch tall, with an overall length of 6 inches. The holder carries a negative rake angle of -6 degrees, which is standard for WNMG-style negative inserts used in facing and general turning operations. It is intended for use by machinists and CNC lathe operators working on metal turning applications where consistent insert seating and repeatable edge presentation are required.

This toolholder is suited for facing operations on CNC turning centers and manual lathes. The 1-by-1-inch shank size fits commonly available tool blocks and quick-change turrets in that bore range. The left-hand orientation positions the cutting edge for specific approach directions on the machine, making it appropriate for applications where a right-hand holder would interfere with the part or chuck. The wedge clamping method provides rigid insert retention, which helps maintain stability during interrupted cuts or aggressive feed rates.

Key Features

• Left-hand DWLNL holder style for directional facing and turning
• Wedge insert clamping for rigid, repeatable insert seating
• Compatible with WNMG 332 negative-rake inserts
• 1 inch by 1 inch shank cross-section fits standard tool blocks
• 6-inch overall length suits common CNC lathe turret setups
• Steel construction for durability under continuous cutting loads

Compatibility

Designed for use with WNMG 332 inserts. The holder style is DWLNL163D. Confirm turret or tool block bore size matches the 1-by-1-inch shank dimensions before ordering.

Installation Notes

Installation should be performed by a qualified machinist familiar with CNC lathe tooling setup. Power down and lock out the machine before mounting or removing toolholders from the turret. Ensure the insert pocket and clamping wedge are clean and free of chips before seating a new insert. Torque the wedge clamp screw according to the insert manufacturer's guidelines for the specific insert grade and application.
