Sandvik Coromant 5731436 Turning Toolholder DTFNR164D

Product Description

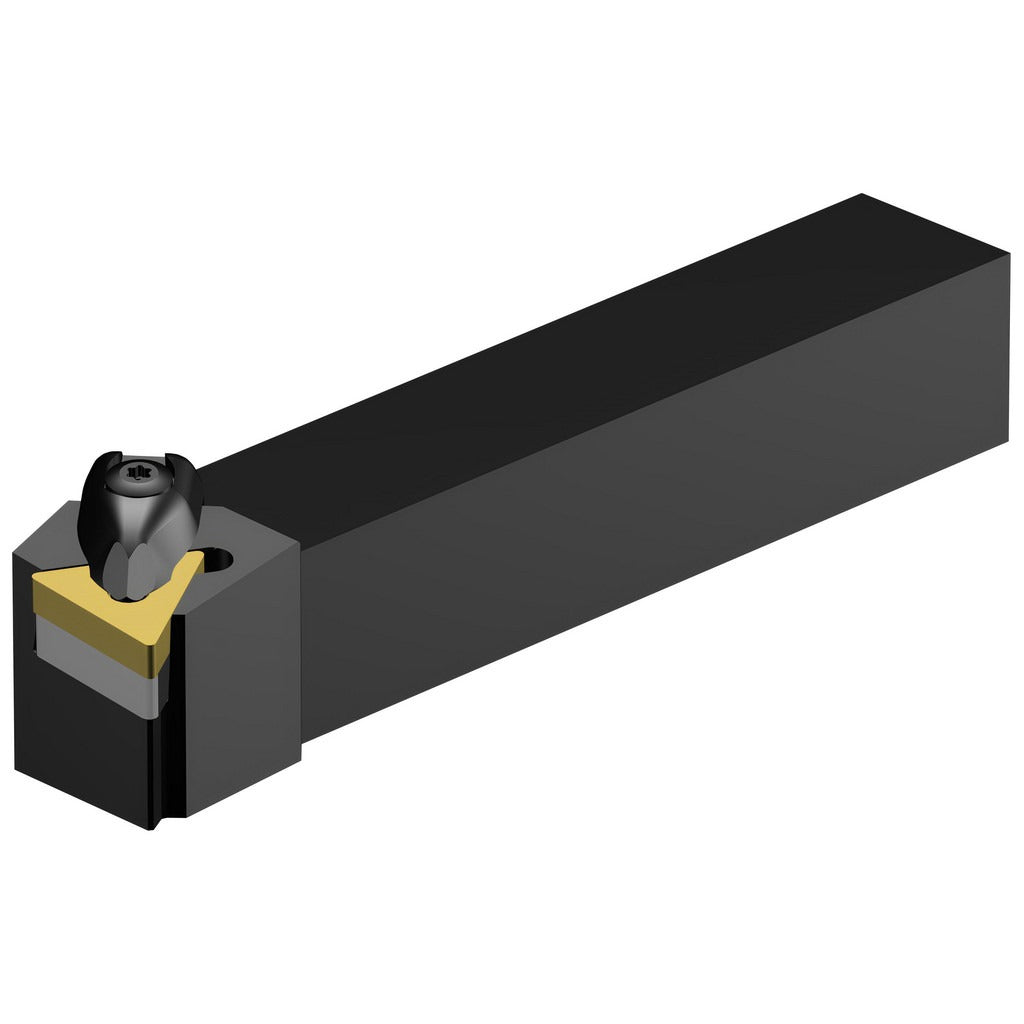

The SANDVIK COROMANT 5731436 is a right-hand indexable turning toolholder in the DTFNR164D style, part of the T-Max P series. It uses a wedge clamping method to secure TNMG 22 04 08 inserts with a negative rake geometry at a rake angle of -6 degrees. The shank measures 1 inch wide by 1 inch tall, with an overall length of 6 inches. Constructed from steel, this toolholder is designed for negative-rake external turning operations on CNC lathes and manual turning centers. It is installed and maintained by machinists and toolroom technicians.

This toolholder fits standard OD turning applications on production lathes where a right-hand cutting direction is required. The DTFNR164D style positions the insert for side-facing and profiling cuts on workpiece materials compatible with TNMG 22 04 08 insert geometry. The T-Max P series is engineered for steel-shank rigidity in demanding turning environments, making it suitable for both roughing and finishing passes when paired with the appropriate insert grade. It is commonly used in job shops, aerospace, and general machining environments.

Key Features

• DTFNR164D toolholder style with right-hand cutting orientation
• Wedge clamping method provides secure insert retention under interrupted cuts
• Accepts TNMG 22 04 08 inserts with negative rake geometry
• 1 inch x 1 inch square steel shank for rigid machine tool interface
• 6 inch overall length with 1.228 inch head length
• Part of the T-Max P series for consistent OD turning performance

Compatibility

Designed to accept TNMG 22 04 08 indexable inserts. Compatible with machine tool holders and turrets that accept a 1 inch x 1 inch square shank. Part of the SANDVIK COROMANT T-Max P series.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine before changing toolholders or inserts per OSHA lockout/tagout procedures. Ensure the shank seating surfaces are clean and free of chips or burrs before mounting. Follow the machine tool manufacturer torque specifications for turret or tool post fasteners.
