Sandvik Coromant 5730858 Turning Insert Dcmt 55 Diamond

Product Description

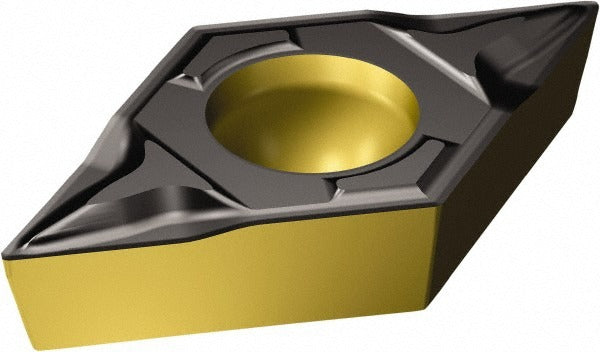

The SANDVIK COROMANT 5730858 is a solid carbide turning insert in a DCMT style with a 55-degree diamond shape. It features a multilayer TiCN, Al2O3, and TiN coating applied over a carbide substrate, delivering wear resistance and thermal protection in a range of turning applications. The insert has a 3/8 inch inscribed circle, a 1/32 inch corner radius, and an overall length of 0.4263 inches. Chip control is handled by the PF chip breaker geometry. The manufacturer grade is 1515. This insert is installed by machinists and CNC lathe operators in production and job-shop environments.

This insert is suited for external and internal turning operations on lathes and turning centers. The 55-degree diamond shape and 7-degree relief angle make it well-matched to profiling and finishing passes. The PF chip breaker is designed for finishing to light interrupted cuts. The ISO code for this insert is DCMT 11 T3 08-PF 1515, which can assist with cross-referencing to toolholder systems and insert pockets designed around DCMT geometry. It is sold individually with a minimum order quantity of 10 units.

Key Features

• TiCN, Al2O3, and TiN multilayer coating for wear and heat resistance
• 55-degree diamond insert shape with 7-degree relief angle (clearance code C)
• 1/32 inch (0.0313 inch) corner radius for finishing-range work
• 3/8 inch inscribed circle with screw-type insert holding method
• PF chip breaker geometry suited to finishing and light turning passes
• ISO code DCMT 11 T3 08-PF 1515 for toolholder compatibility reference

Compatibility

Designed for use in DCMT-style toolholders with screw clamping that accept a 55-degree diamond insert with a 3/8 inch inscribed circle and screw hole diameter of 0.1732 inches. Confirm toolholder pocket geometry and insert size code 32.52 before installation.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before changing inserts. Use the appropriate torx or hex key to secure the clamping screw to the toolholder manufacturer's specified seating method. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert.
