Sandvik Coromant 5728469 Boring Bar Modular Adapter C5

Product Description

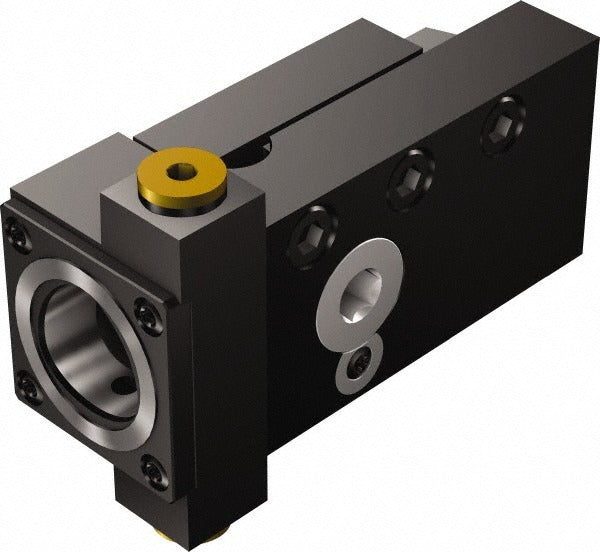

The SANDVIK COROMANT 5728469 is a boring bar modular adapter designed for precision internal boring operations in CNC machining environments. With a 1.9685-inch bore diameter and a C5 connection size, this adapter interfaces between the machine spindle and a compatible boring bar to extend reach and maintain rigidity. The body measures 5.1378 inches in length with a bore depth of 1.4370 inches, supporting stable tool engagement in tight-tolerance bores. External coolant delivery keeps cutting zones clear during extended cuts. This adapter is installed by machinists and tool-room technicians working with modular tooling systems.

This adapter suits horizontal and vertical machining centers running modular boring systems that accept C5 interface connections. It is well-suited for medium to large-bore applications in production and job-shop environments where modular tooling flexibility and quick changeover are priorities. The external coolant configuration makes it a practical choice for materials that generate significant heat at the cutting zone. A compatible lock screw, part number 5758460, is used to secure the boring bar within the adapter.

Key Features

• C5 modular connection size for compatibility with C5-standard spindle interfaces
• 1.9685-inch bore diameter with 1.4370-inch bore depth for secure bar seating
• 5.1378-inch body length provides reach extension in modular boring setups
• External coolant design directs fluid to the cutting area during operation
• Screw thread lock mechanism with compatible lock screw 5758460
• Body diameter of 1.9685 inches matches bore diameter for a uniform profile

Compatibility

Designed for use with C5-connection modular boring systems. Compatible lock screw part number is 5758460. Manufacturer cross-reference part number C5-RC2085-32130-20M is associated with this adapter.

Installation Notes
