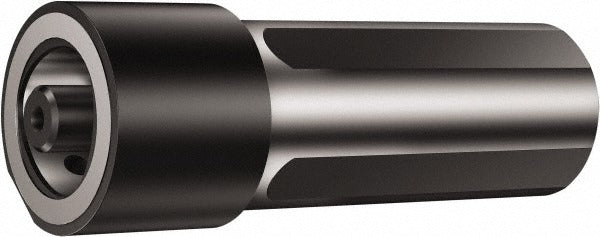

Sandvik Coromant 5727943 Capto Cx-nc3000 Indexable Clamp

Product Description

The SANDVIK COROMANT 5727943 is a Cx-NC3000 clamping component designed for use within the Coromant Capto modular tooling system. This clamp secures indexable inserts in compatible Capto toolholders, maintaining accurate positioning and repeatable clamping force during turning, milling, or boring operations. Weighing 4.82 pounds, it is a robust, precision-machined component built to the dimensional standards of the Coromant Capto interface. Manufacturer catalog number C5-NC3000-12024-A32 serves as the primary cross-reference for sourcing and replacement. Machinists, toolroom technicians, and CNC setup personnel working with Capto-based tooling systems are the primary end users of this component.

The 5727943 clamp is suited for shops running Coromant Capto Cx-series toolholders, particularly those using the C5 size designation as indicated by the catalog reference C5-NC3000-12024-A32. It is applicable in both production turning centers and machining centers where modular quick-change tooling is specified. The NC3000 clamp style is designed for indexable insert seats that require a dedicated clamping screw or lever mechanism consistent with the Coromant Capto system architecture.

Key Features

• Cx-NC3000 clamp style for Coromant Capto modular tooling interface
• Compatible with C5 Coromant Capto size based on catalog reference C5-NC3000-12024-A32
• Designed for secure, repeatable indexable insert clamping
• Sold as a single-unit replacement component
• Weighs 4.82 pounds — robust construction suitable for production environments

Compatibility

This clamp is identified under manufacturer catalog number C5-NC3000-12024-A32 and industry standard number C5-NC3000-12024-A32, indicating fitment within the Coromant Capto C5 tooling series for indexable applications.

Installation Notes

Installation and replacement of indexable clamping components should be performed by qualified toolroom technicians or CNC setup personnel with the machine spindle stopped and all axes at a safe position. Follow the toolholder manufacturer torque and seating procedures for the specific clamp style to ensure proper insert location and clamping integrity. Inspect the clamp seat and mating surfaces for wear or contamination before installing the replacement component. Refer to applicable shop safety protocols and the equipment manufacturer documentation for guidance specific to your tooling system.
