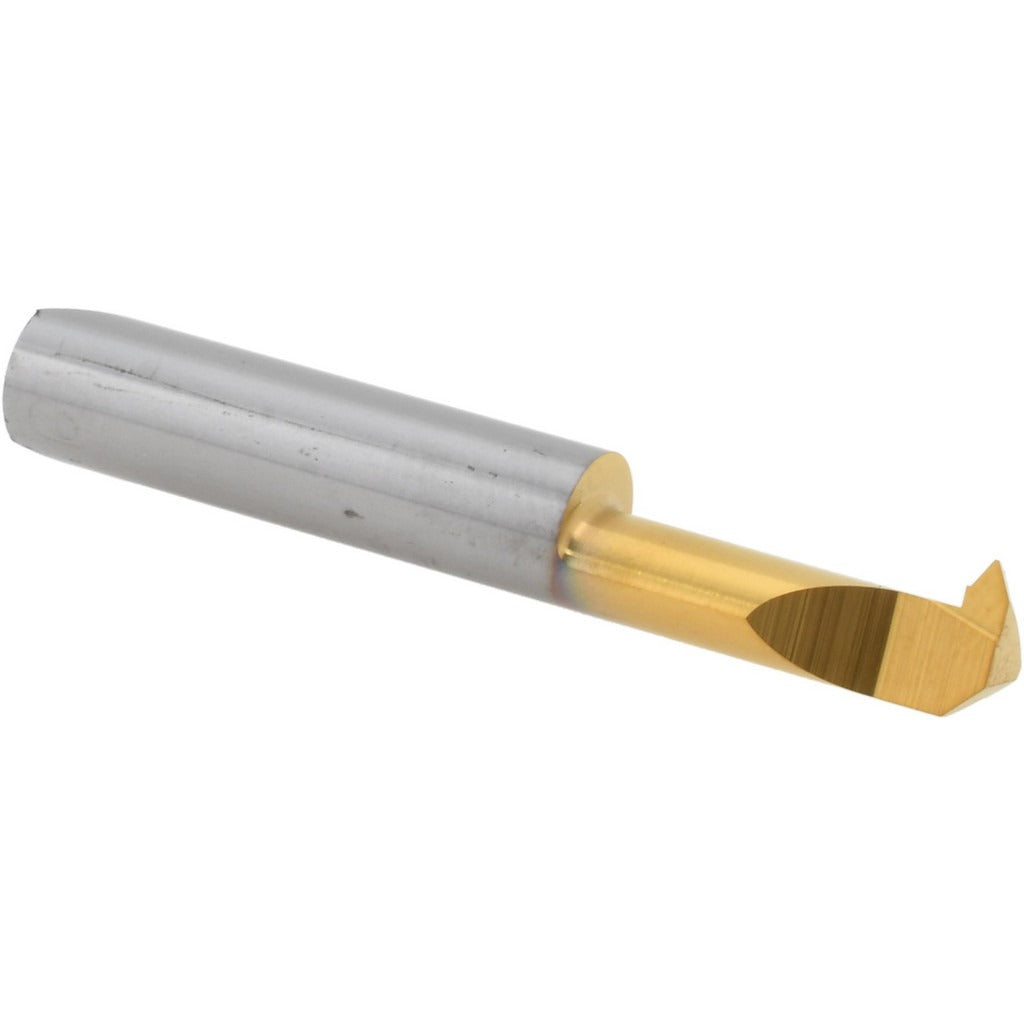

Sandvik Coromant 5726624 Boring Bar Solid Carbide Tialn/tin

Product Description

The SANDVIK COROMANT 5726624 is a solid carbide boring bar designed for precision internal diameter machining in metalworking and manufacturing operations. Built from 1025-grade solid carbide with a TiAlN/TiN finish, it delivers the rigidity and wear resistance required for tight-tolerance bore work. The bar features a right-hand cut orientation and a 6mm shank diameter with an overall length (OAL) of 37.3mm, making it suitable for compact tooling setups. Minimum bore diameter is 6.2mm, with a maximum boring depth of 15mm. Machinists and tooling technicians working with CNC lathes and boring applications will find this bar appropriate for fine finishing and semi-finishing passes in small-diameter bores.

This boring bar is intended for use in small-bore internal turning applications on CNC lathes and turning centers. Its compact dimensions make it well-suited to shallow-depth bore work in components where access is limited. The solid carbide construction and TiAlN/TiN coating support use in ferrous and non-ferrous materials where surface finish and dimensional accuracy are critical. It is typically used in production machining environments, tool rooms, and precision job shops where consistent bore geometry is required.

Key Features

• Solid carbide (1025-grade) construction for rigidity and vibration resistance in small-diameter boring
• TiAlN/TiN coating provides wear resistance and thermal stability during cutting operations
• Right-hand cut orientation for standard lathe and turning center setups
• 6.2mm minimum bore diameter supports tight-access internal turning work
• 15mm maximum boring depth limits application to shallow-bore operations
• 6mm shank diameter and 37.3mm OAL for compact tooling configurations

Compatibility

Designed as an OEM-style boring bar for use in CNC lathes and turning centers accepting a 6mm shank. Consult SANDVIK COROMANT tooling documentation to confirm holder and machine compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Secure the shank firmly in a compatible boring bar holder and verify runout before operation. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Do not exceed the recommended maximum boring depth of 15mm for this bar.
