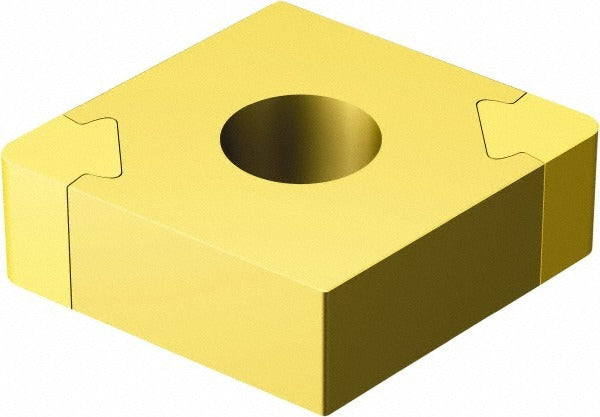

Sandvik Coromant 5725081 Turning Insert CNGA432T0330AWH 7015

Product Description

The SANDVIK COROMANT 5725081 is a solid carbide turning insert with a Titanium Nitride (TiN) coating, designed for precision metal-turning operations on CNC and manual lathes. It features an 80-degree diamond insert shape (Shape Code C), a Grade 7015 carbide substrate, and a 1/32-inch corner radius. The inscribed circle measures 1/2 inch (0.5000 inches), and the insert thickness is 3/16 inch (0.1875 inches). The insert length is 0.1142 inches. It is held in place using a clamp and pin method. Machinists and CNC operators install this insert in compatible toolholders for finishing and semi-finishing cuts on steel and hard materials.

This insert is suited for use in turning centers and CNC lathes performing external and internal diameter operations. The CNGA insert style with a 0-degree relief angle (Clearance Code N) and Tolerance Code G makes it appropriate for rigid setups where close dimensional tolerances are required. The Grade 7015 TiN-coated carbide is commonly applied in continuous cutting applications on steels and cast irons. The chip breaker designation A and the ISO Code CNGA120408T01030AWH 7015 identify the full insert geometry for toolholder and catalog matching.

Key Features

• Grade 7015 solid carbide substrate with Titanium Nitride (TiN) coating for wear resistance on steel and cast iron
• 80-degree diamond insert shape (Shape Code C) for versatile turning geometries
• 1/2-inch inscribed circle (12.70 mm) for stable seating in standard CNGA toolholders
• 1/32-inch corner radius (0.79 mm) suitable for semi-finishing and finishing operations
• Clamp and pin holding method for secure insert retention under cutting loads
• ISO Code CNGA120408T01030AWH 7015 for precise cross-reference and toolholder matching

Compatibility

Designed as an OEM-style replacement turning insert for use in CNGA-style toolholders accepting a 432 insert size with clamp and pin retention. Confirm toolholder specifications against the ISO Code CNGA120408T01030AWH 7015 before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before changing inserts. Use appropriate insert-handling tools to avoid contact with cutting edges. Inspect the toolholder pocket and seating surfaces for wear or debris before seating the new insert, and verify clamp and pin engagement before resuming operation.
