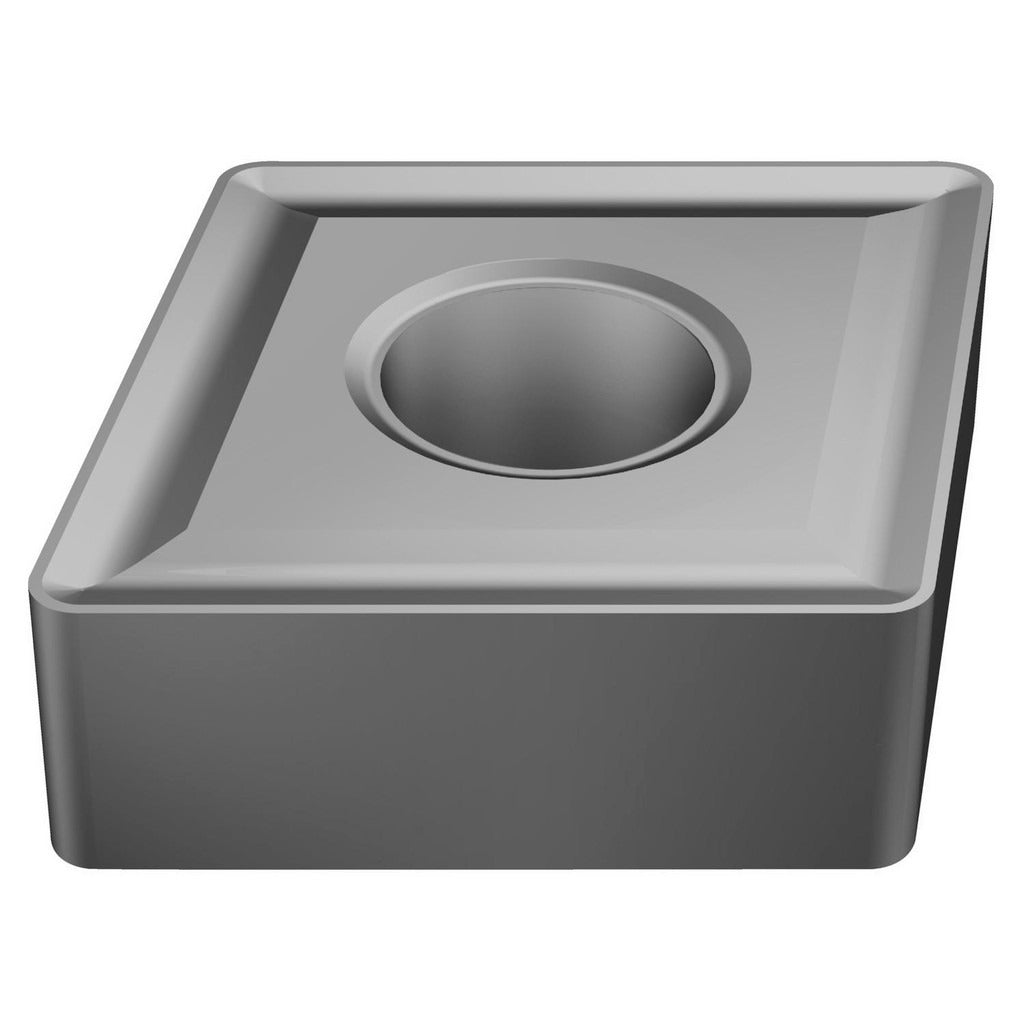

Sandvik Coromant 5724532 CNMG432 H13A Turning Insert

Product Description

The SANDVIK COROMANT 5724532 is a solid carbide, uncoated turning insert in the CNMG432 H13A designation, part of the T-Max P series. It features an 80-degree diamond insert shape with a neutral hand orientation and a 0.0313 inch corner radius. The inscribed circle measures 0.5 inches and insert length is 0.4762 inches. With four cutting edges and a clamp-and-pin holding method, this insert is suited for general turning operations on steel and stainless steel workpieces. It is installed by machinists and CNC operators in production and job shop environments.

This insert is designed for external and internal turning applications on steel (ISO material code P) and stainless steel (ISO material code M). The T-Max P series is a widely used platform in medium to heavy-duty turning. The NMG chip breaker geometry and H13A uncoated carbide grade make it appropriate for operations where coating-free substrate performance is required, such as certain finishing passes or applications sensitive to built-up edge from coated grades. Sold individually with a minimum order quantity of 10.

Key Features

• CNMG432 insert style with 80-degree diamond shape and four usable cutting edges
• H13A uncoated solid carbide grade for steel and stainless steel turning
• Neutral hand orientation for flexible toolholder compatibility
• 0.0313 inch (1/32 inch) corner radius for general-purpose turning
• NMG chip breaker for controlled chip evacuation in continuous cuts
• Clamp and pin holding method for secure seating in compatible toolholders

Compatibility

Designed for use in CNMG-style toolholders compatible with the T-Max P series platform. ISO code CNMG 12 04 08 H13A. Primary workpiece material is steel; secondary workpiece material is stainless steel.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the machine before seating or replacing inserts. Use the appropriate torque wrench and clamp screw specified by the toolholder manufacturer when securing the insert — do not over-torque the clamp screw. Inspect the insert pocket and pin locator for wear or debris before installing a new insert.
