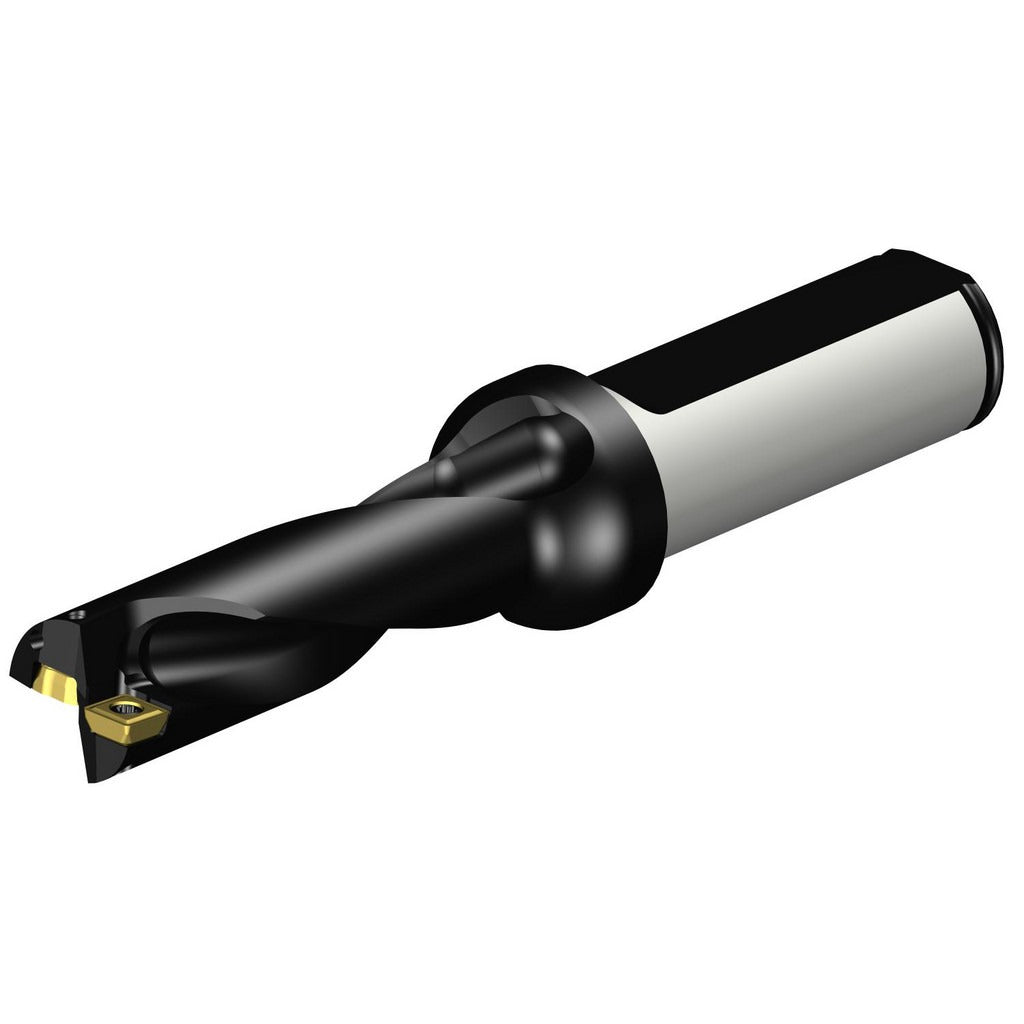

Sandvik Coromant 5724445 Indexable Insert Drill 3xd

Product Description

The SANDVIK COROMANT 5724445 is an indexable insert drill designed for precision hole-making in metal cutting applications. Built on the CoroDrill 880 series platform, this drill body accepts two indexable inserts and delivers a maximum drill depth of 2.099 inches at a 3xD depth-to-diameter ratio. The tool body is constructed from steel and features a straight cylindrical shank with a 0.75 inch shank diameter. Right-hand cutting direction and through-coolant capability make this drill suitable for high-productivity, close-tolerance drilling operations. Licensed HVAC and metalworking tradespeople, machinists, and tool-and-die professionals are the typical end users.

This drill is suited for production machining environments where indexable insert tooling is preferred over solid carbide for cost-efficiency and repeatability. Compatible with A880..LXxx-03 drill style inserts, this body is appropriate for use in CNC machining centers and lathes running right-hand operations. The flute length of 2.504 inches and body length of 2.126 inches keep the tool compact for setups requiring minimal gauge length. Coolant-through delivery supports chip evacuation and extended insert life at higher feed rates.

Key Features

• 3xD depth-to-diameter ratio with 2.099 inch maximum drill depth
• Accepts two A880..LXxx-03 series indexable inserts
• Through-coolant capable for improved chip evacuation and insert longevity
• Right-hand cutting direction for standard CNC spindle compatibility
• Straight cylindrical shank at 0.75 inch diameter for secure, repeatable tool holding
• Steel tool body construction for rigidity and durability in production environments

Compatibility

Designed for use with A880..LXxx-03 style indexable drill inserts with an insert size of 0.102 inches (2.60 mm). Verify insert grade and geometry selection against workpiece material before use.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Secure the straight shank fully into the tool holder to the recommended gauge length before tightening. Power down and lock out the machine spindle before performing any insert or tool body changes. Follow the machine tool builder and insert manufacturer guidelines for feed rate and speed settings appropriate to workpiece material.
