Sandvik Coromant 5724416 Turning Insert Ccgt 80 Diamond

Product Description

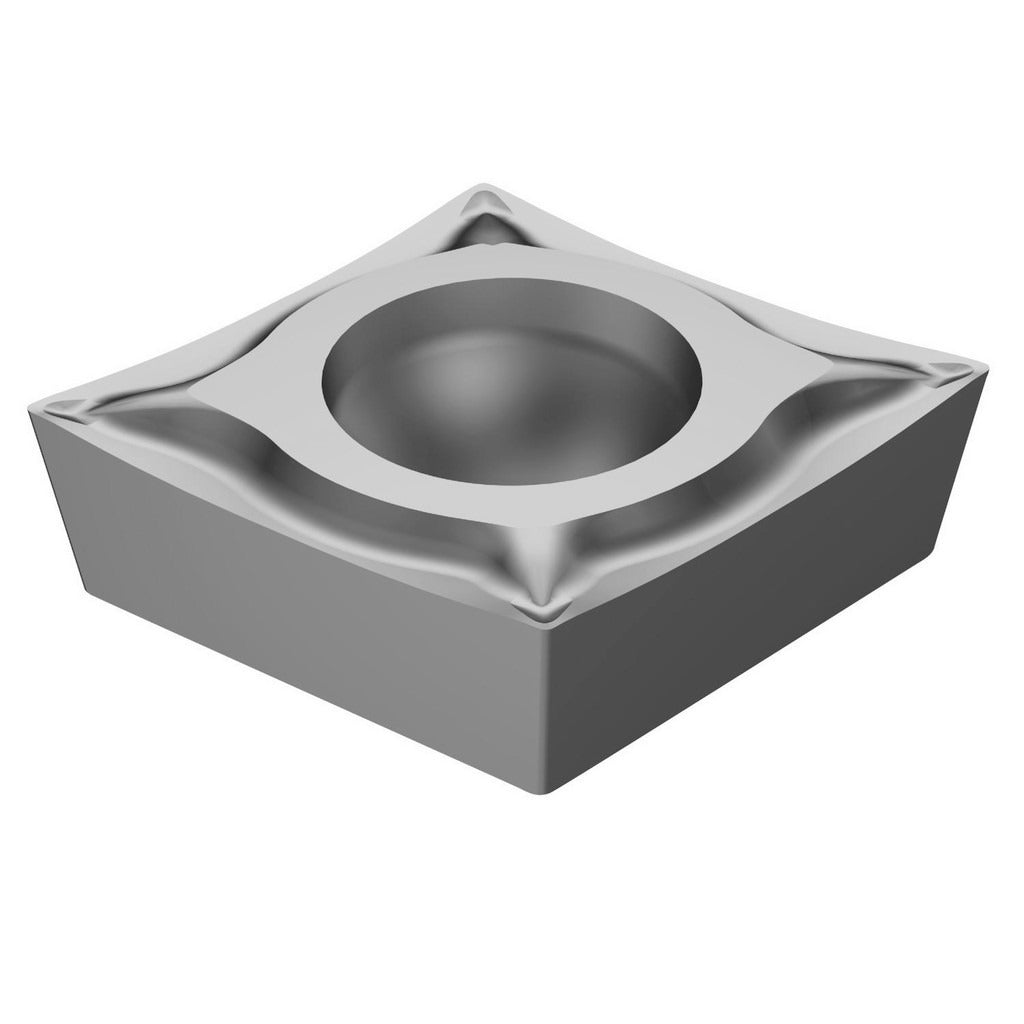

The SANDVIK COROMANT 5724416 is a solid carbide turning insert designed for precision external turning operations. Manufactured to CCGT geometry with an 80-degree diamond shape and a neutral hand orientation, this insert belongs to the CoroTurn 107 series. It features a bright, uncoated finish and a UM chip breaker configuration. The inscribed circle measures 1/4 inch (6.35 mm), insert length is 6.45 mm, and the corner radius is 0.10 mm (0.0039 inch). With two cutting edges and a screw-type holding method, it is suited for light to medium turning passes on steel and stainless steel workpieces.

The 5724416 is intended for use in CNC turning centers and manual lathes where tight tolerance and fine-finish cuts are required. The CoroTurn 107 series is specifically engineered for small part turning and profiling operations. Primary workpiece material is steel (ISO code P), with secondary suitability for stainless steel (ISO code M). The UM chip breaker geometry promotes efficient chip control during finishing cuts at light depths of cut up to 6.35 mm. This insert is typically installed and indexed by CNC machinists and tool-and-die professionals in precision machining environments.

Key Features

• Solid carbide construction with bright uncoated finish for sharp, precise cutting edges
• CCGT insert style with 80-degree diamond shape and neutral hand orientation
• UM chip breaker for controlled chip formation during finishing operations
• Corner radius of 0.10 mm for fine surface finish on steel and stainless steel
• Screw-type insert holding method for secure, repeatable seating in compatible toolholders
• Two usable cutting edges per insert for extended value per unit

Compatibility

Designed for use in CCGT-style toolholders compatible with the CoroTurn 107 series. ISO code CCGT060201UMH13A. Insert size code 21.503. Suitable for steel (P) and stainless steel (M) workpiece materials. Verify toolholder bore and clamping screw compatibility before installation.

Installation Notes

Insert indexing and replacement should be performed with the machine at a full stop and all spindle energy isolated per shop safety procedures. Use the manufacturer-specified torx or hex key for the clamping screw to seat the insert fully against the pocket locating surfaces without over-torquing. Inspect the pocket for wear or debris before seating a new insert. This insert is intended for installation by qualified machinists familiar with CNC or manual turning tool systems.
