Sandvik Coromant 5724368 Turning Insert Ccgt Coroturn 107

Product Description

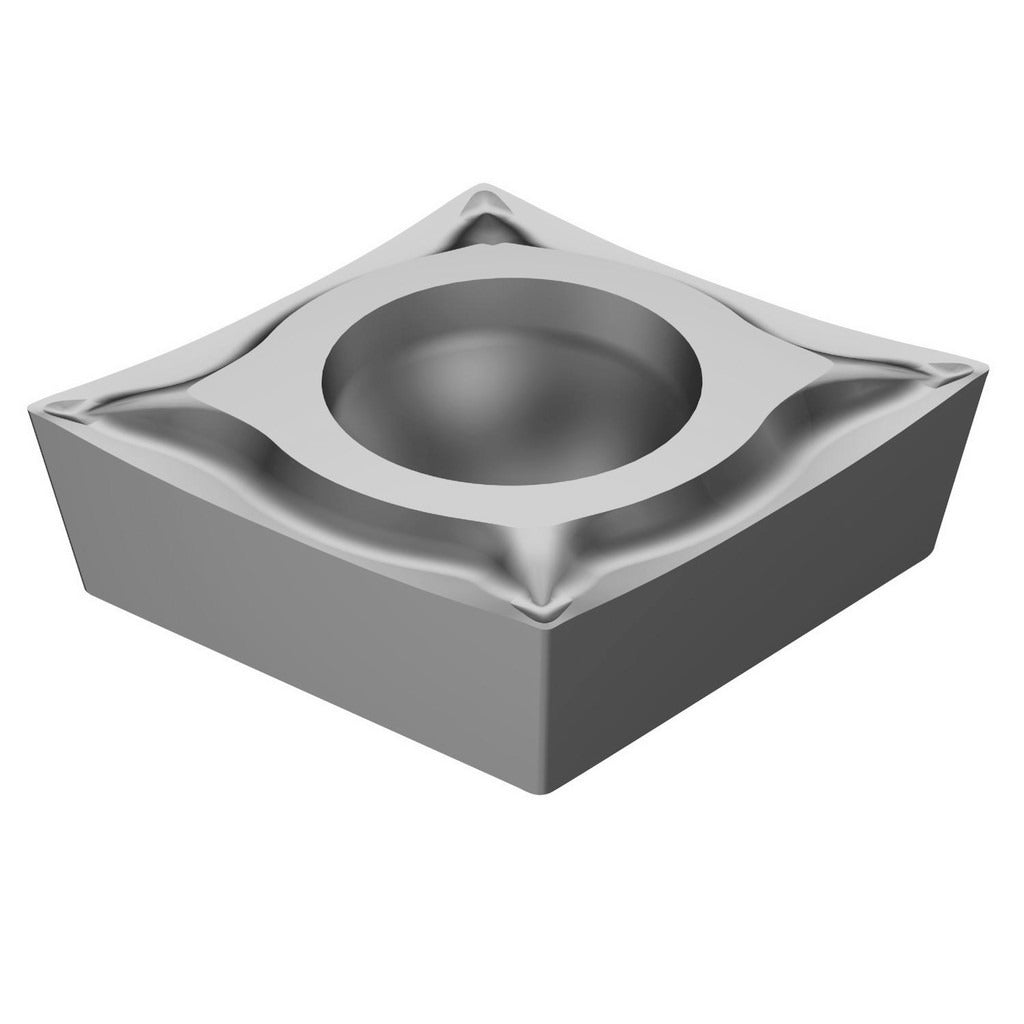

The SANDVIK COROMANT 5724368 is a solid carbide turning insert in the CCGT style, part of the CoroTurn 107 series. It features an 80-degree diamond shape with a neutral hand orientation and a bright, uncoated H13A carbide grade. The inscribed circle measures 0.2500 inches (6.35 mm), the corner radius is 0.0079 inches (0.20 mm), and the insert length is 0.2539 inches (6.45 mm). With two cutting edges and a UM chip breaker geometry, this insert is designed for finishing and light turning operations. Licensed machinists and CNC operators install this insert in compatible CoroTurn 107 toolholders for precise, repeatable results on steel and stainless steel workpieces.

This insert is suited for external and internal turning on CNC lathes in both job shop and production environments. Its primary workpiece material is steel (ISO code P), with a secondary rating for stainless steel (ISO code M). The UM chip breaker geometry promotes effective chip control during light finishing cuts at shallow depths. The ISO designation for this insert is CCGT060202UMH13A. It is appropriate for applications where surface finish quality and close tolerances are the priority, particularly in operations requiring a small corner radius and controlled chip evacuation.

Key Features

• H13A uncoated solid carbide grade for consistent performance on steel and stainless steel
• 80-degree diamond (CCGT) insert shape with neutral hand for versatile turning setups
• UM chip breaker geometry engineered for light finishing cuts and effective chip control
• 0.0079 inch (0.20 mm) corner radius for tight-tolerance finishing applications
• Screw-lock insert holding method for secure, repeatable seating in the toolholder
• Maximum depth of cut of 0.2461 inches (6.25 mm) for light to moderate material removal

Compatibility

Designed for use with CoroTurn 107 series toolholders that accept CCGT-style inserts with a 0.2500 inch inscribed circle and screw-lock clamping. Verify toolholder seat geometry and clamp screw compatibility before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine spindle before changing inserts. Use the correct torque driver or T-key for the clamp screw to ensure proper seating without over-tightening. Inspect the insert pocket and seating surface for debris or damage before installing a new insert, as contamination in the pocket directly affects cutting performance and part tolerance.
