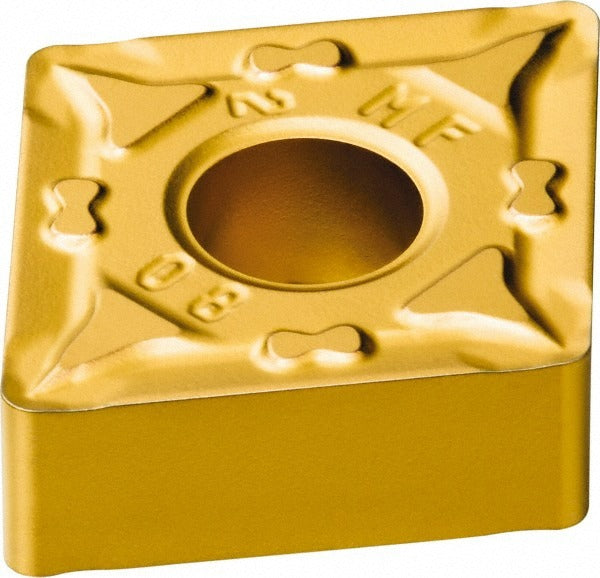

Sandvik Coromant 5724294 Turning Insert CNMG432-MF S05F

Product Description

The SANDVIK COROMANT 5724294 is a CNMG432-MF S05F indexable turning insert from the T-Max P series, designed for external and internal turning operations on superalloy and titanium workpieces. Manufactured from solid carbide and coated via CVD with a TiCN, Al2O3, and TiN multilayer system, this insert delivers wear resistance and thermal stability in demanding cutting conditions. The 80-degree diamond shape (CNMG insert style) provides a strong cutting edge geometry, while the MF chip breaker is optimized for medium finishing passes. Licensed HVAC, plumbing, and trade-supply items fall outside its scope — this insert is a precision machining consumable installed by CNC machinists and toolroom professionals.

The 5724294 is suited for turning centers and CNC lathes engaged in finishing and semi-finishing of superalloys and titanium alloys — materials classified under ISO workpiece material code S. The neutral hand orientation makes it compatible with both right- and left-hand toolholders that accept the CNMG insert style. The T-Max P series is a widely recognized SANDVIK COROMANT platform for steel and difficult-to-machine materials, making this insert a direct fit for shops running aerospace, medical, and energy-sector components. The insert is sold individually with a minimum order quantity of 10 units.

Key Features

• CVD multilayer coating — TiCN, Al2O3, and TiN — for extended tool life in superalloy and titanium cutting
• 80-degree diamond insert shape (CNMG) with 4 cutting edges for cost-effective indexing
• MF chip breaker geometry suited for medium finishing operations
• Neutral hand orientation compatible with standard CNMG clamp and pin toolholders
• S05F manufacturer grade optimized for ISO S workpiece materials (superalloys and titanium)
• ISO designation CNMG 12 04 08-MF S05F for cross-reference with standard toolholder catalogs

Compatibility

Designed for use in CNMG-style toolholders that accept a 0.5 inch inscribed circle insert with clamp and pin holding methods, as specified for the T-Max P series platform.

Installation Notes

Insert indexing and replacement should be performed with the machine spindle fully stopped and the machine locked out per shop lockout/tagout procedures. Use the appropriate CNMG torque wrench or clamp key specified for the toolholder to seat the insert securely — do not over-tighten by hand. Inspect the insert pocket and seating surface for chips or debris before indexing to a fresh cutting edge. Dispose of worn inserts per facility carbide recycling procedures.
