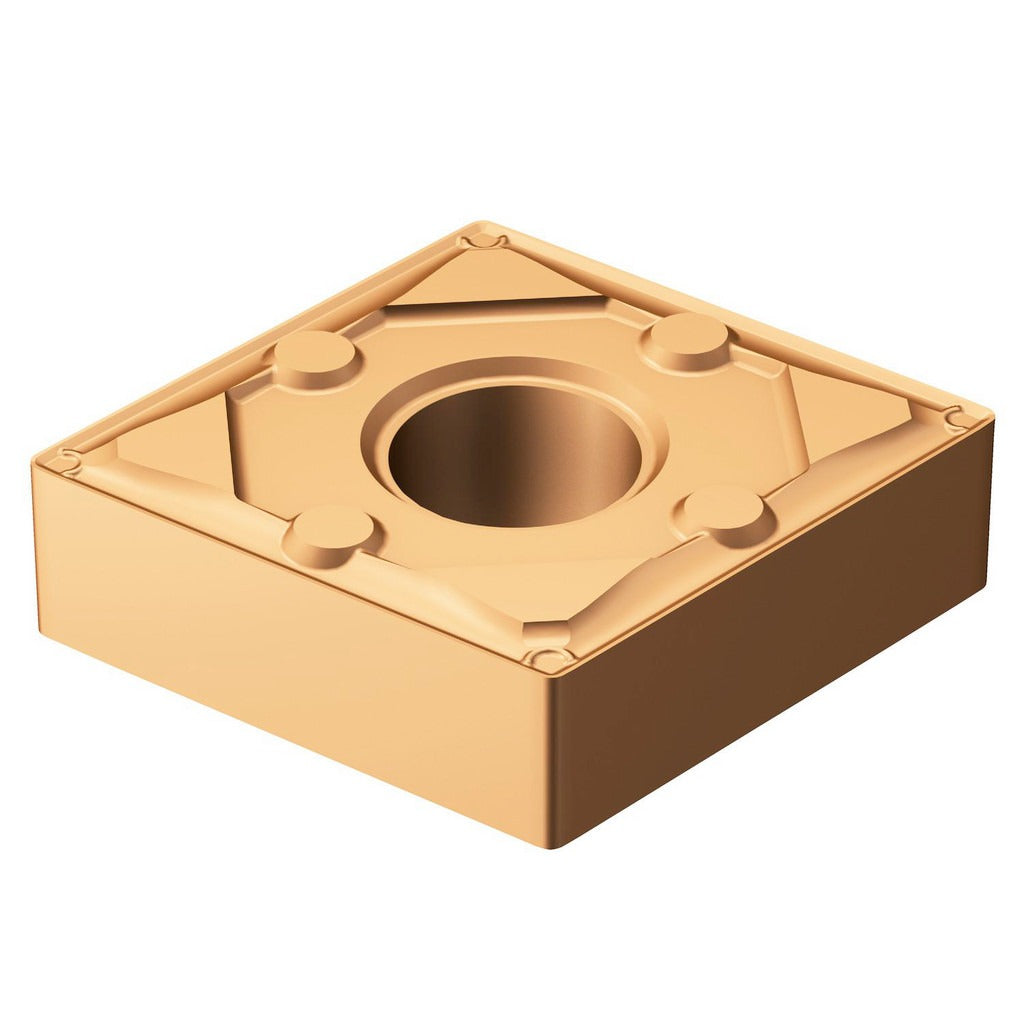

Sandvik Coromant 5724063 Turning Insert Cnmg 1115

Product Description

The SANDVIK COROMANT 5724063 is a CNMG-style carbide turning insert from the T-Max P series, designed for precision external turning operations on CNC lathes and turning centers. Coated with TiAlN and AlCr2O3 via a PVD process, the 1115 grade insert delivers strong wear resistance and thermal stability when cutting stainless steel and other demanding workpiece materials. The insert features a WF chip breaker geometry, an 80-degree diamond shape, and a neutral hand orientation. It measures 12.50 mm in length with a 12.70 mm inscribed circle and a 0.40 mm corner radius, giving machinists predictable edge geometry and reliable chip control across a range of feeds and depths.

This insert is primarily intended for machining stainless steel, classified under ISO workpiece material code M. It is well suited for finishing and light-to-medium roughing passes on CNC turning centers in job shop, production, and aerospace or medical component manufacturing environments. The WF chip breaker is optimized for controlled chip evacuation in gummy, work-hardening materials. The T-Max P series is a widely used platform among professional machinists and tooling specialists working with indexable turning systems. Each package contains one insert.

Key Features

• TiAlN and AlCr2O3 PVD coating for wear resistance and thermal performance on stainless steel
• 80-degree diamond insert shape (C code) with neutral hand orientation
• WF chip breaker geometry engineered for controlled chip flow in stainless and difficult-to-cut materials
• Four usable cutting edges per insert for extended tooling economy
• 0.40 mm corner radius provides a balance of edge strength and surface finish capability
• Clamp and pin holding method compatible with standard CNMG toolholders

Compatibility

Designed for use in standard CNMG-style toolholders that accept a 1/2-inch inscribed circle insert with clamp and pin holding. Part of the SANDVIK COROMANT T-Max P series platform.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or tooling technician with the machine in a full stop and energy-isolated state per applicable lockout/tagout procedures. Ensure the toolholder pocket and clamp surfaces are clean and free of chips before seating the insert. Use the correct torque tool for the clamping screw as specified by the toolholder manufacturer - do not over-tighten. Inspect the cutting edge under magnification before use to confirm no chipping or coating damage occurred during handling.
