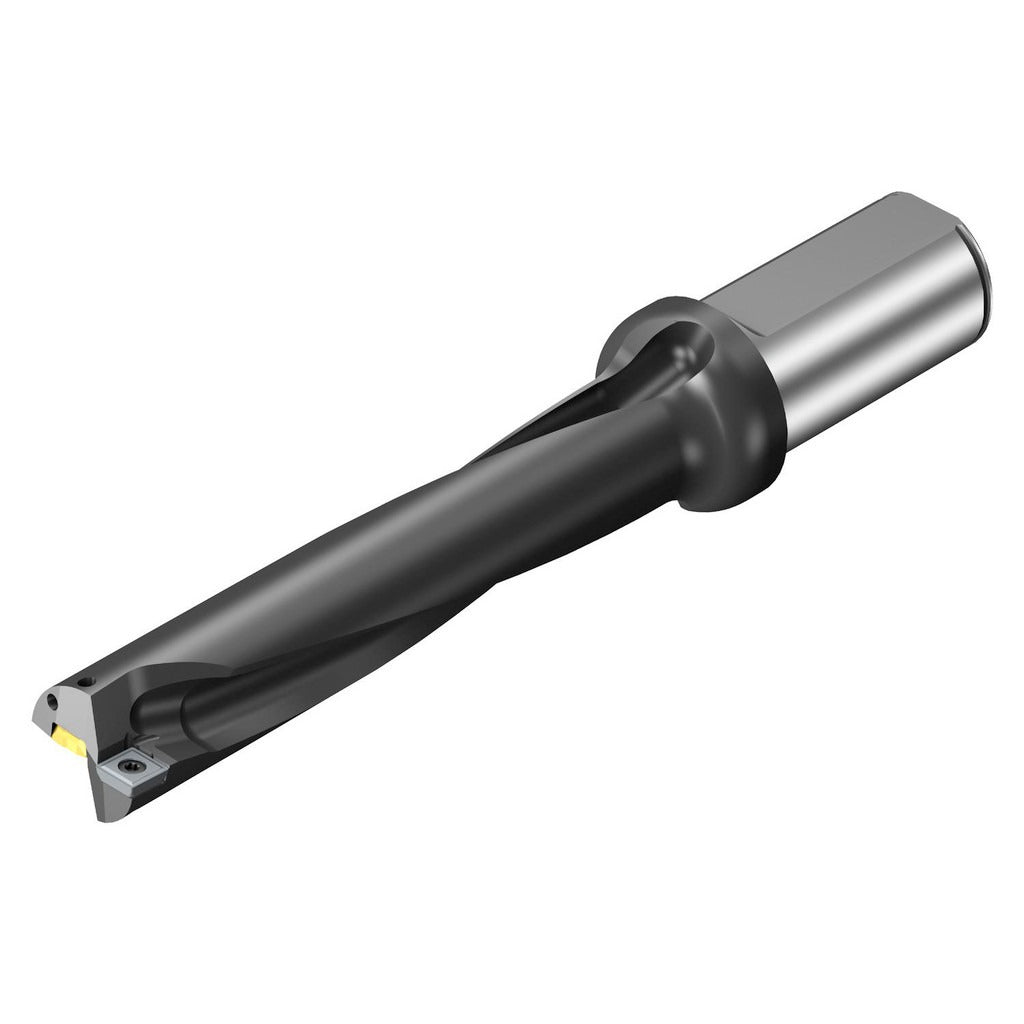

Sandvik Coromant 5723802 Indexable Insert Drill 5xd

Product Description

The SANDVIK COROMANT 5723802 is a steel-body indexable insert drill engineered for high-productivity hole-making in metal cutting applications. Part of the CoroDrill 880 series, it accepts two indexable inserts and delivers a maximum drill depth of 4.8255 inches at a 5xD depth-to-diameter ratio. The drill body measures 23.80 mm (0.9646 inches) in maximum drill diameter and mounts via a 1-inch straight cylindrical shank. Coolant-through capability supports chip evacuation and tool life in demanding machining environments. Licensed machinists and CNC programmers specify this drill for interrupted cuts and high-feed applications where insert replacability lowers per-hole cost.

This indexable insert drill is suited for machining centers, CNC turning centers with live tooling, and dedicated drilling machines in job shop and production environments. It is applicable to ferrous and non-ferrous workpiece materials where a 5xD hole depth is required. The right-hand cutting direction and straight-cylindrical shank make it compatible with standard ER and side-lock tool holders accepting a 1-inch shank. The 5723802 is a single-unit item with a minimum order quantity of one.

Key Features

• 5xD drill depth ratio — maximum drill depth 4.8255 inches (4.0 to 5.0 inch depth range)
• Coolant-through design for improved chip evacuation and extended insert life
• Accepts two indexable inserts, insert size 2.80 mm (0.1102 inches), compatible drill style A880..LXxx-05
• Steel tool body with straight-cylindrical 1-inch shank for broad holder compatibility
• Right-hand cutting direction; flute length 5.3715 inches (136.43 mm)
• CoroDrill 880 series platform for consistent insert indexing and repeatability

Compatibility

Designed for use with inserts conforming to drill style A880..LXxx-05. Shank diameter is 1.0000 inches, compatible with straight-bore tool holders and chucks accepting a 1-inch cylindrical shank. No additional compatible model numbers were specified in the product data.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle and tool holder are fully stopped and de-energized before inserting or removing the drill body. Verify insert seating and screw torque according to the insert manufacturer guidelines before running the first hole. Coolant-through connections must be confirmed leak-free and pressure-rated for the machine tool's internal coolant system before operation.
