Sandvik Coromant 5723696 Indexable Insert Drill 3xd

Product Description

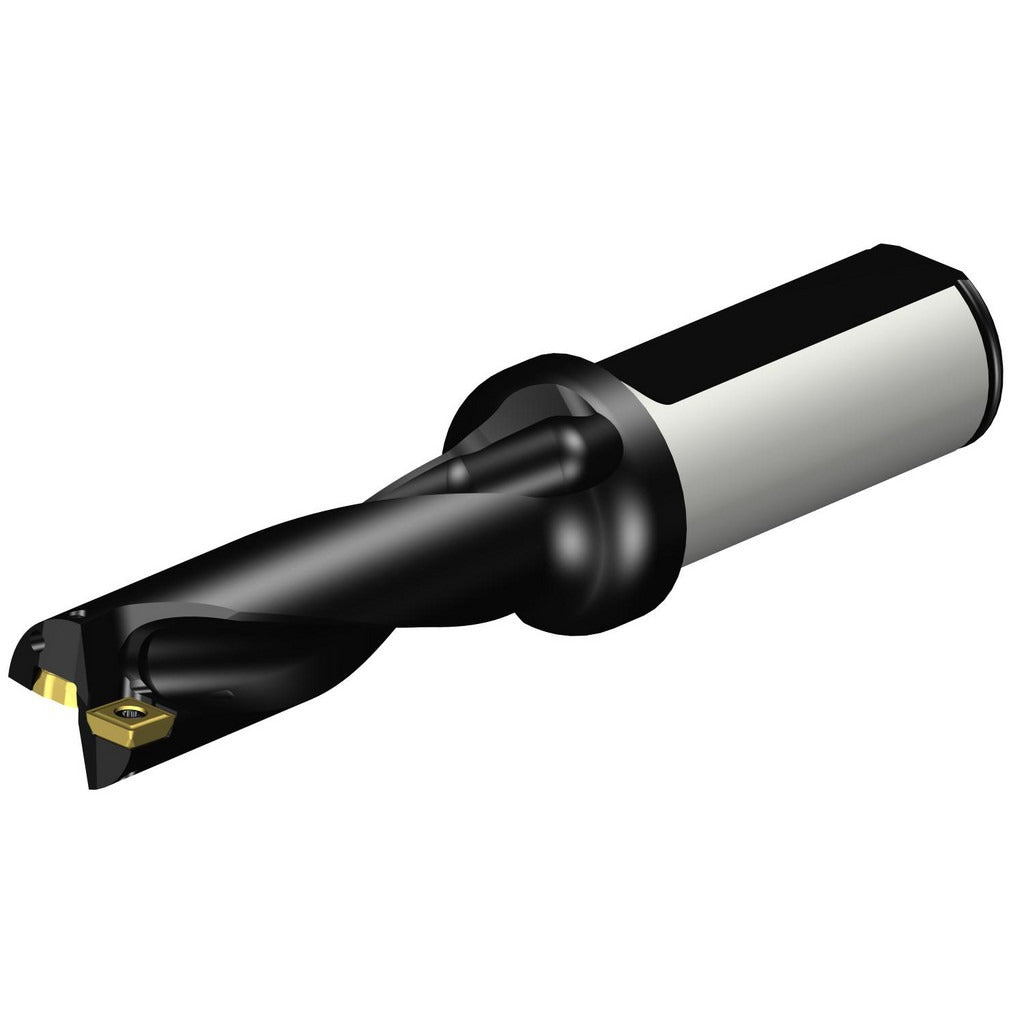

The SANDVIK COROMANT 5723696 is a straight-shank indexable insert drill engineered for precision hole-making in metal fabrication and machining applications. Built to the CoroDrill 880 series platform, this drill accepts two indexable inserts in the A880..LXxx-03 drill style and delivers a maximum drill diameter of 20.62mm (0.8750 inches) with a maximum drill depth of 2.58216 inches at a 3xD depth-to-diameter ratio. The tool body is constructed from steel and features through-coolant capability, making it well-suited for production environments where heat management and chip evacuation are critical. It is installed by machinists and tooling technicians on CNC lathes and machining centers.

This indexable drill is designed for right-hand cutting in applications requiring consistent, repeatable bore diameters in the 20.62mm range. The 3xD depth ratio positions it for general-purpose drilling in steel, cast iron, and similar workpiece materials where controlled entry and exit geometry is required. The 1-inch straight cylindrical shank provides a secure, standard interface with ER and hydraulic toolholders commonly found on vertical and horizontal machining centers. With two insert seats, the tool delivers both a central cutting insert and a peripheral insert geometry for full-diameter engagement.

Key Features

• 3xD drill depth ratio with a maximum drill depth of 2.58216 inches (2.0 to 3.0 inch depth range)
• Maximum drill diameter of 20.62mm (0.8750 inches) for precision bore sizing
• Takes two indexable inserts in A880..LXxx-03 drill style — no regrinding required
• Through-coolant (coolant-through) design for improved chip evacuation and insert life
• Right-hand cutting direction with a 1-inch straight cylindrical shank
• Steel tool body with a flute length of 3.0694 inches (77.96mm)

Compatibility

Compatible with A880..LXxx-03 drill style indexable inserts. Insert size is 0.1102 inches (2.80mm). Verify insert grade and geometry selection against the CoroDrill 880 series insert assortment for your specific workpiece material.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and the tool changer is disabled before mounting or removing the drill body from its holder. Confirm shank clamping torque and runout per your machine tool and toolholder manufacturer specifications before cutting. Inspect both insert seats and seating surfaces for debris or damage before installing replacement inserts.
