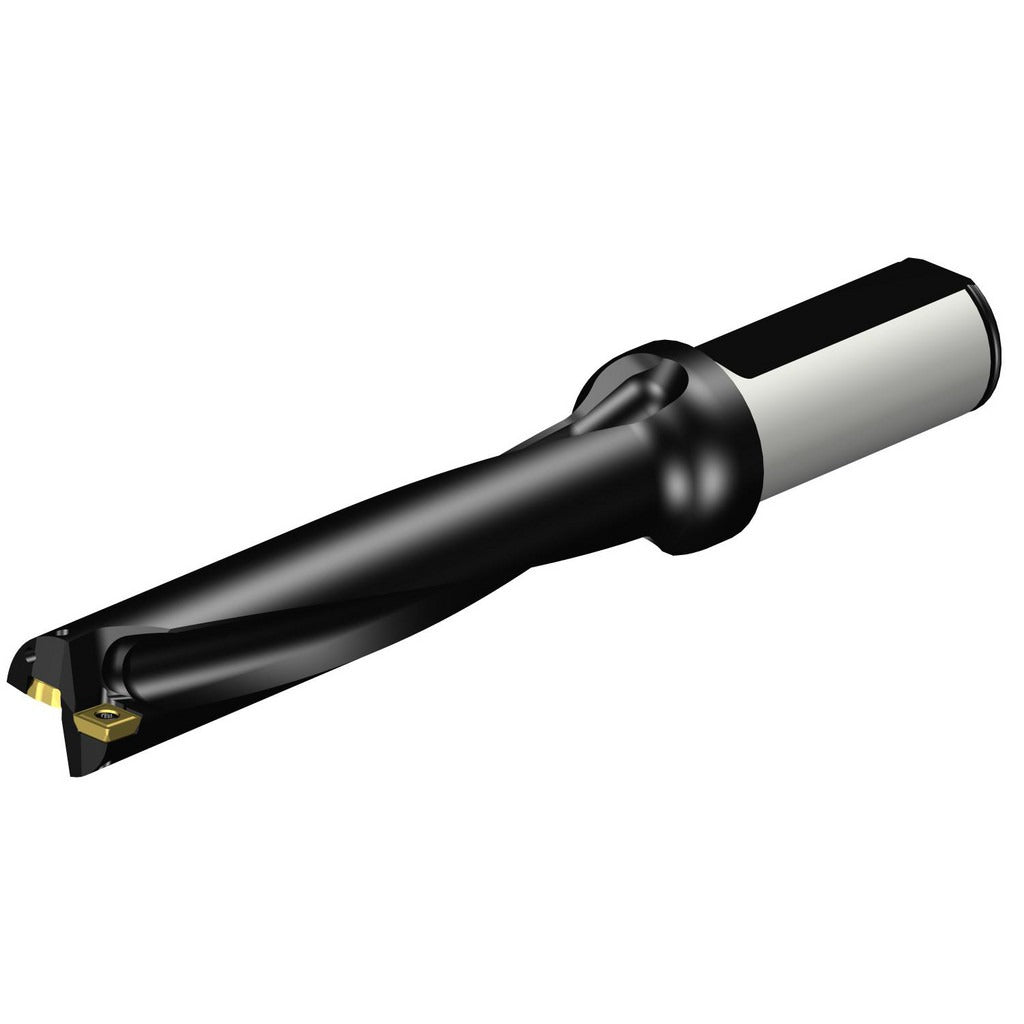

Sandvik Coromant 5723665 Indexable Insert Drill 7/8 in 5xd

Product Description

The SANDVIK COROMANT 5723665 is a steel-body indexable insert drill designed for high-productivity hole-making in metal cutting applications. It accepts two replaceable cutting inserts in the A880..LXxx-05 drill style, allowing seat-level maintenance without replacing the entire tool body. The drill reaches a maximum depth of 114.46mm (4.51 inches) at a 5xD depth-to-diameter ratio, with a maximum drill diameter of 22.23mm (0.875 inches). Coolant-through capability keeps the cutting zone clear and manages heat at depth. This tool is handled by machinists and CNC operators in production and job-shop environments.

This indexable drill is suited for straight-hole drilling in ferrous and non-ferrous materials on CNC machining centers, lathes with live tooling, and manual mills with sufficient spindle rigidity. The straight cylindrical shank measures 1 inch in diameter and 2.2047 inches in length, making it compatible with standard toolholders and collet chucks of matching bore. Right-hand cutting direction is standard. The 5xD ratio positions this tool for deeper-than-standard single-pass drilling where a spot drill or pilot may not be required depending on machine capability and material.

Key Features

• 5xD drill depth-to-diameter ratio with a maximum drill depth of 114.46mm (4.51 inches)
• Compatible drill style A880..LXxx-05 accepts 2 indexable inserts for in-place insert changes
• Coolant-through design for chip evacuation and heat management at depth
• Straight cylindrical shank at 1 inch diameter for broad toolholder compatibility
• Right-hand cutting direction with a maximum drill diameter of 22.23mm (0.875 inches)
• Steel tool body construction for rigidity and durability in production environments

Compatibility

Designed for use with A880..LXxx-05 series indexable drill inserts with an insert size of 2.80mm (0.1102 inches). Fits toolholders and collet chucks with a 1-inch straight-cylindrical bore. Verify machine spindle power and rigidity requirements for the 5xD depth range of 100.00mm to 150.00mm before use.

Installation Notes

Installation and insert changes should be performed by a qualified machinist with the machine fully powered down and spindle locked. Secure the shank to the specified toolholder torque per the toolholder manufacturer guidelines. Ensure coolant-through passages are clear and system pressure is confirmed before initiating a cut. Do not exceed the stated maximum drill depth or diameter parameters for this tool body.
